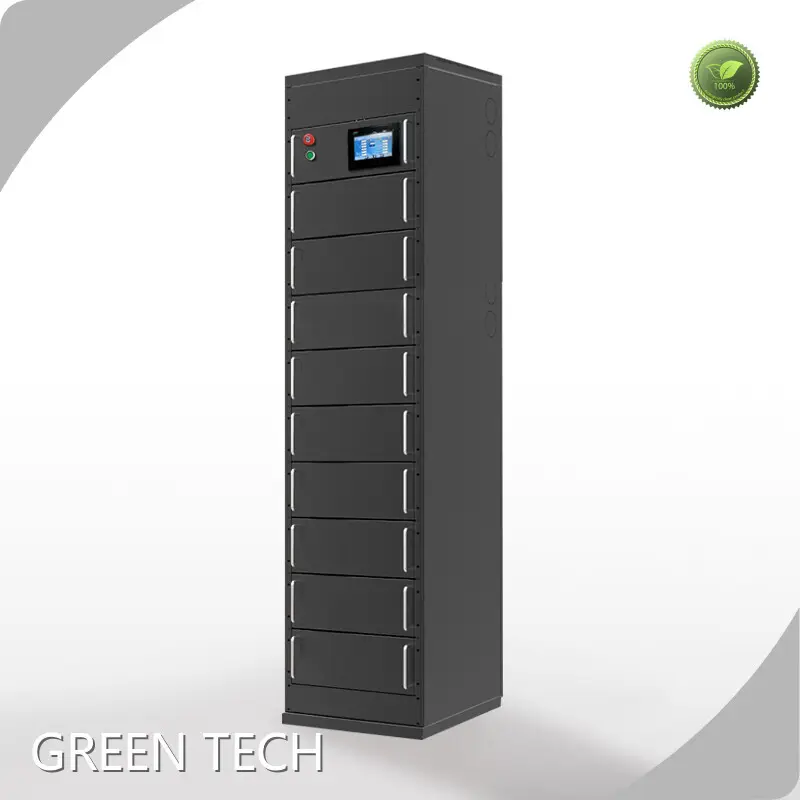

Hot Sale Capacitor Bank Price List - EG Series

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· Our provided capacitor bank price list is prepared using premium quality raw materials.

· This product is put into use with the best quality. 语句主语还是语句1的 capacitor bank price list

· is well-funded with adequate capacitor bank price list supply and thoughtful service.

Company Features

· With rich production experience for capacitor bank price list, can guarantee high quality.

· We have professional personnel engaged in manufacturing. These in-house members are responsible for design, manufacturing, testing and quality control for years.

· is willing to do whatever it takes to provide great services to customers. Ask online!

Application of the Product

Our capacitor bank price list is widely used.

With Internet technology, we provide a one-stop solution for practical and effective implementation of related problems encountered in the process of purchasing products.
