Hot Salepower Storage Solutions Manufacture

Company Advantages

· The production of power storage solutions is a combination of advanced designs and technologies.

· A team of skilled quality controllers handles the quality checks that are conducted to examine and ensure the flawlessness of the offered products.

· Over the years, this product has received a good reputation from our customers.

Product Parameters

General Characteristics

Mechanical Specifications

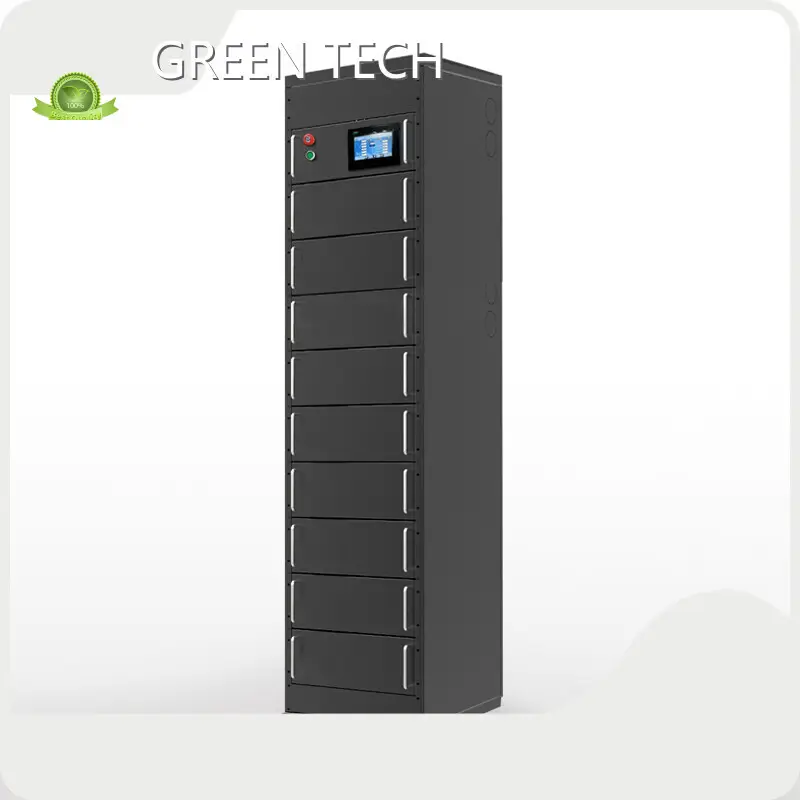

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· is a strong power storage solutions enterprise full of competition.

· Located in a place where economic conditions and logistics are unique, the factory enjoys geographical advantages. These advantages enable our factory to gain financial support and cut delivery costs and time. We have expanded our selling channels in different countries. They mainly include Europe, South America, Middle East, and Southeast Asia. Our products, including power storage solutions, sell like hotcakes in these markets.

· We continue to focus on managing our operating footprint. We are learning from best practices to increase the diversion of our waste and mitigate our greenhouse gas (GHG) emissions.

Product Details

We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.
