Hotgraphene Battery for Ev 5.7 Kg Brand

Product Parameters

General Characteristics

Mechanical Specifications

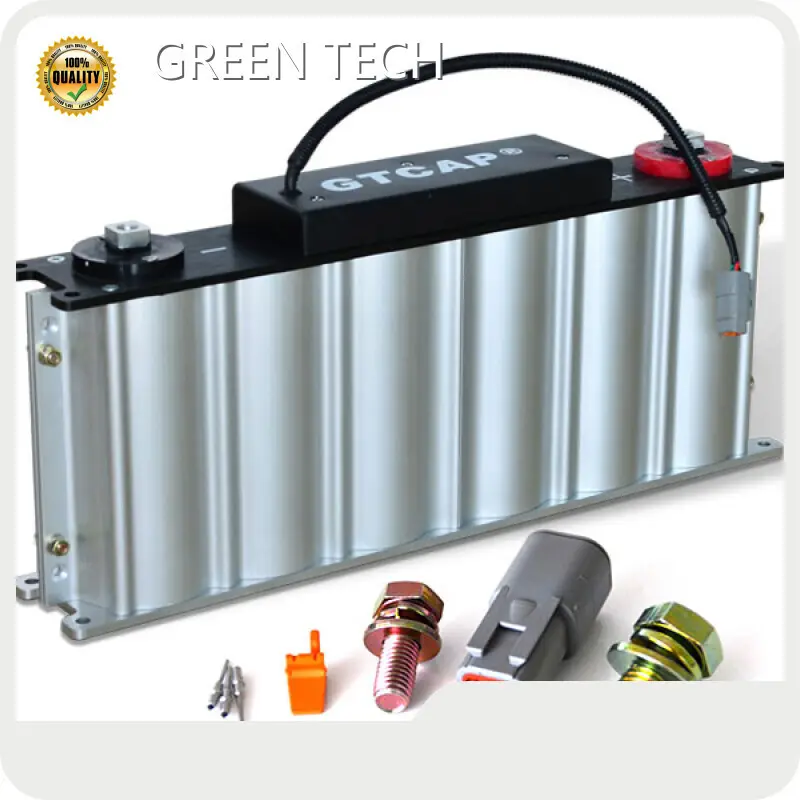

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· graphene battery for ev is manufactured in strict accordance with international standards.

· For better durability and endurance, our professional engineers successfully developed graphene battery for ev with high quality.

· can provide relative quality tests for graphene battery for ev to prove its quality.

Company Features

· by is a well-known brand in China and has considerable influence in the graphene battery for ev field.

· has a technical laboratory and a total warehouse.

· Our principle is to perform a "deep dive" market investigation before we conduct business in the market. We will prepare a market segmentation analysis to determine if our products will sell in the local market or what we need to be cautious about during our business.

Application of the Product

graphene battery for ev can be used in many industries.

In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
