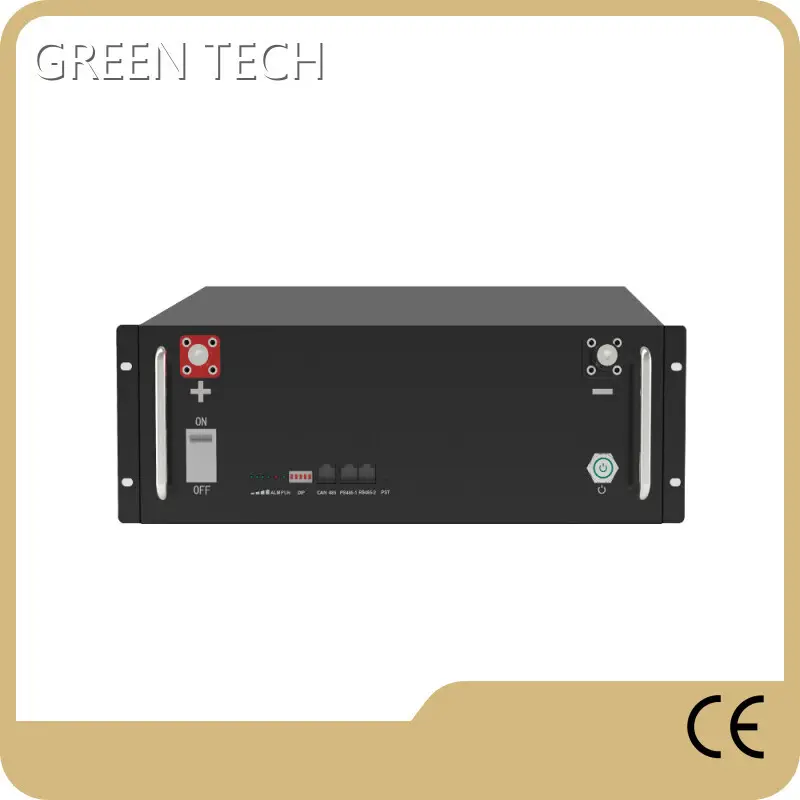

Hothousehold Solar Battery Cost 4.5kWh Brand

Series:

EF Series

Part Number:

GTEF-48V4500-E

Max. Continuous Discharge Current:

50A

Max. Continuous Charge Current:

50A

Energy storage:

4.5kWh

Inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V4500-E
Energy storage	4.71kWh
Capacity	92Ah
Nominal Voltage	51.2Vdc
Maximum Charge Voltage	57.6Vdc
Discharge Cut-off Voltage	44.8Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Communication	CAN, RS485
Monitoring Data	System,voltage,current, temperature,SOC,SOH,cells’ voltage
Protection & Alarms	Over charge,over current,over temperature,over discharge
Anti-theft	Intelligent software lock; GPS, displacement lock,buzzer alarm
Projected Cycle Life ( 25℃)	6,000 times
Recommended Depth of Discharge	≤95%
Maximum Depth of Discharge	95%
Shell Material	Metal & ABS plastic
Cooling Method	Natural
Series Connection	Not allowed
Parallel Connection	Up to 16sets (need to clarify when place order)
Series and Parallel Connection	Add controller box (need to clarify when place order)

Weight	38kg
Dimensions(WxDxH)	486x590x133.3(mm)
Mount Options	Standard 19” rack mounted

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· household solar battery cost are constructed using sophisticated technology and high grade materials.

· This offered brand product is with stable performance.

· has project team who can make household solar battery cost design solution for you.

Company Features

· Thanks to the well-designed factory, guarantees the mass production and on-time delivery of household solar battery cost.

· has strong capital and technical back-up for household solar battery cost.

· strive to boost overseas sales by establishing a new export department. Get an offer!

Application of the Product

household solar battery cost can be applied to different industries, fields and scenarios.

From the customer's point of view, we provide our customers with a complete, fast, efficient and feasible solution to solve their problems.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
