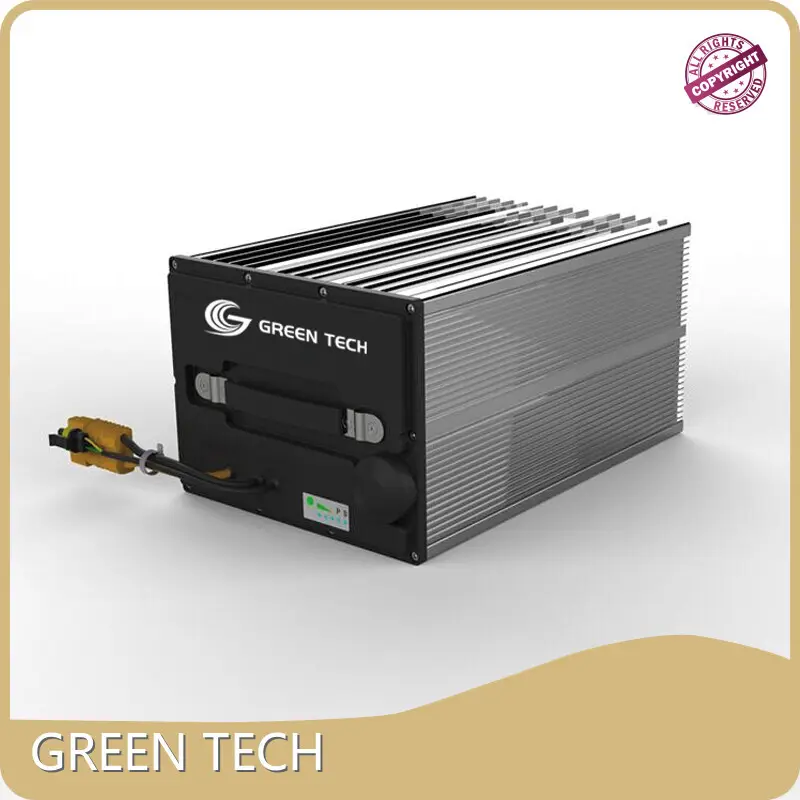

Hotsolar Home Batteries GTEM-60V1560-M Brand

Company Advantages

· solar home batteries is manufactured utilizing quality checked material that are obtained from the most trusted vendors of the industry.

· The product which has passed through many international certifications is highly dependable.

· The product has many usages and is widely used by people from various fields.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· is the backbone enterprise of the domestic solar home batteries manufacturing industry.

· With first-rate technology strength, solar home batteries is of superb function. Thanks to our industrious team, our solar home batteries has become more of an attract.

· We handle all logistical issues as well, from import/export procedures to legal clearances, to customs processing - all customers will do is to sign to accept the final delivery. We are proud to offer the best transportation and transportation time in the industry. Please contact us!

Product Comparison

The main differences between solar home batteries and similar products are as follows.
