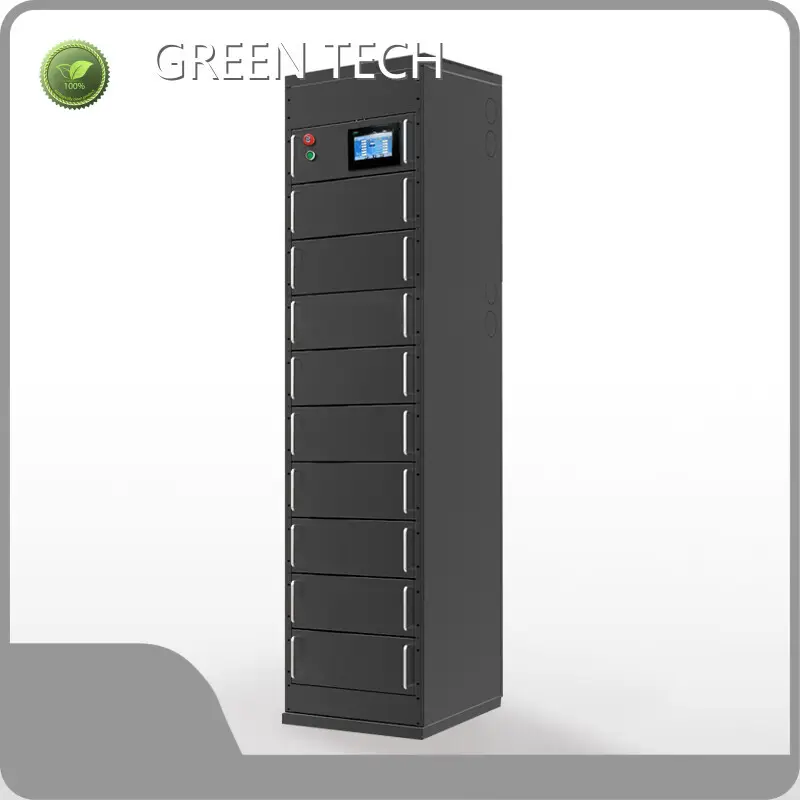

Hotsupercapacitor Bank 39.4kWh Brand 1
Hotsupercapacitor Bank 39.4kWh Brand 1

Hotsupercapacitor Bank 39.4kWh Brand

Maximum Charge Voltage:
856.8Vdc
Max. Continuous Charge Current:
200A
Energy storage:
39.4kWh
Discharge Cut-off Voltage:
642.6Vdc
Dimensions(WxDxH):
560x700x1804(mm)
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEG-700V39K-R

Energy storage

39.4kWh

Nominal Voltage

703.8Vdc

Maximum Charge Voltage

856.8Vdc

Discharge Cut-off Voltage

642.6Vdc

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

280A

Max. Continuous Discharge Current

280A

Discharge rate

5C

Max. Continuous Output Power

196kW

Charge Temperature*1

-20℃~+60℃

Discharge Temperature*2

-40℃~+60℃

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

50,000 times

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

Indoor

Cooling Method

Liquid cooling ( cycle frequently )

Shell Material

Metal

Parallel Connection

 No limited ( add controller box )

communication

CAN, RS485

Weight

580kg

Dimensions(WxDxH)

560x700x1804(mm)

Mount Options

On floor

Certificate
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Advantages

· supercapacitor bank has been paid 100% attention from the internal structure to the appearance.

· The quality standards of this product are based on government and industry requirements.

· will continue to upgrade its management system and accelerate the process of building the brand.


Company Features

· stands out in today's fierce market competition relying on strong capabilities in developing and manufacturing of supercapacitor bank.

· It is clear that supercapacitor bank is made by the most advanced staff utilizing high-end technology.

· Leading the supercapacitor bank industry has always been one of the aims of Check now!


Application of the Product

The supercapacitor bank produced by our company is suitable for various occasions in industry.

Before developing a solution, we will fully understand the market situation and customer's needs. In this way, we can provide effective solutions for our customers.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
