Household Batteries for Solar 200A Wholesale -

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V10k-B
Energy storage	10kWh
Nominal Voltage	51.8Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Stainless steel
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	82kg
Dimensions(WxDxH)	1124x400x256(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

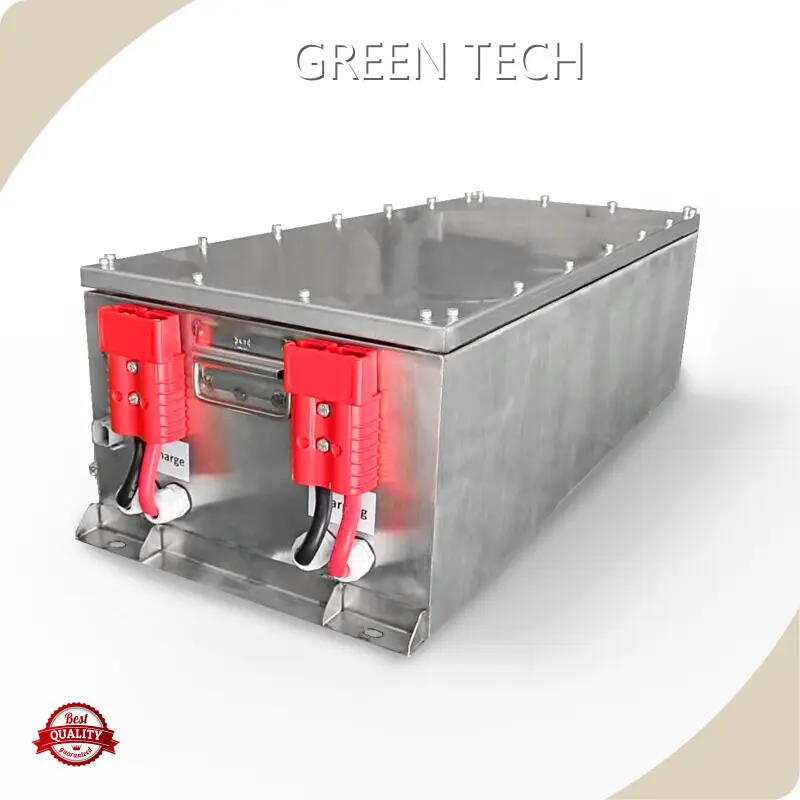

GTEM-48V10K-B Battery

Company Advantages

· The whole production of household batteries for solar is finely finished by our dedicated experienced production team.

· We have a complete set of quality assurance system and sophisticated testing equipment to ensure its quality.

· Quality always comes in a more obvious place in

Company Features

· is now among the best in the household batteries for solar industry.

· Our manufacturing is backed by state-of-the-art facilities. Investment is ongoing to increase capacity and, more importantly, new capabilities to increase production flexibility.

· We are designing and implementing innovative solutions to take on environments. We constantly protect our natural resources and reduce production waste.

Application of the Product

The household batteries for solar produced by our company is widely used in various industries and fields.

insists on providing customers with of high quality and a one-stop solution that's comprehensive and efficient.
