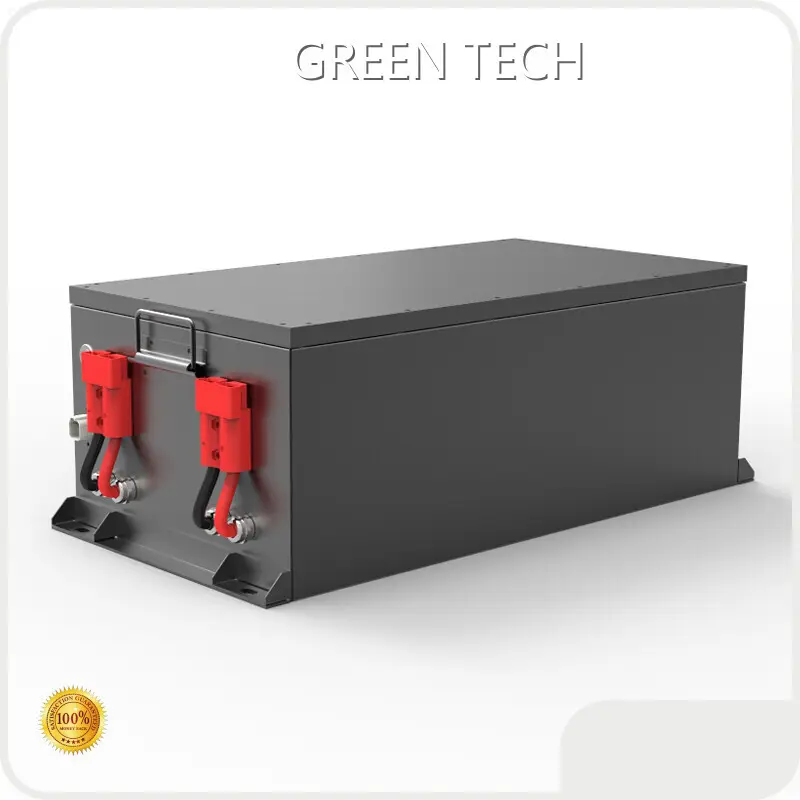

Household Batteries for Solar 37Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· sticks to the principle of high quality and never use poor material.

· The product is durable, functional, and practical.

· This product has a wide range of applications on the market.

Company Features

· mainly produces and supplies high-quality household batteries for solar.

· Our Research & Development department plays a central role in achieving our business objectives. Their high level of expertise and experience in the household batteries for solar industry are put to good use in shaping the development process.

· will continue to follow the purpose of 'for the sake of customers, provide high-quality products'. Call now!

Application of the Product

household batteries for solar can be used in many industries.

has been engaged in the production of for many years and has accumulated rich industry experience. Based on that, we could provide comprehensive and excellent solutions according to actual situations and the needs of different customers.
