Part Number |

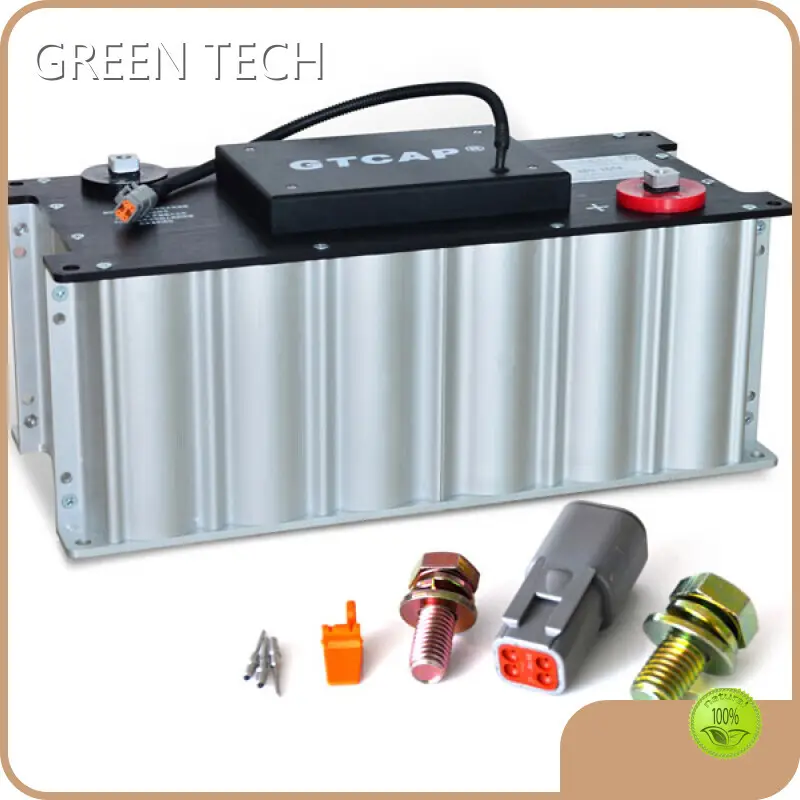

GTSM-48V165FUS |
Nominal capacitance |
125 F |
Capacitance tolerance |
-10%~~+20% |
Rated voltage |
48V |
Maximum absolute voltage |
51V |
ESR, DC |
5 mΩ |
Maximum continuous current (ΔT=40℃) |
100 A |
Maximum peak current, 1 sec. |
2,275 A |
Maximum leakage current (after 72hrs @ 25℃) |
5.2 mA |
Operating temperature range (Cell case temperature) |
-40℃ to +65℃ |
Storage temperature range(Storage uncharged) |
-40℃ to +70℃ |
Power terminals |
M8 Screw Hole |
Negative Terminal |
M10 Screw Hole |
Recommended torque - terminal |
20/30 Nm |
Vibration specification |
SAE J2380 ISO16750-2, T14 |
Shock specification |
SAE J2464 |
Colling |
Natural Convection |
Weight |
20kg |
Environmental protection |
IP65 |
Internal temperature sensor |
NTC Thermistor |
Cell voltage monitoring |
Overvoltage Alarm |
Compatible Protocol: CAN, RS485
Company Advantages
· household battery pack is better in its material than similar type of products.
· Our clients greatly trust the product for its unmatched quality and long-lasting performance.
· has achieved a good reputation in the world's household battery pack industry.
Company Features
· The fame of has been increased much since its establishment.
· With strong scientific research and development capacities, the technical capabilities of are widely recognized.
· ensures high-quality household battery pack service for its customers.
Application of the Product
household battery pack can be used in different industries to meet the needs of customers.
With a focus on is dedicated to providing reasonable solutions for customers.
Welcome, Shanghai Green Tech (GTCAP) is a supercapacitor battery manufacturer and energy storage solutions provider,
offering OEM, ODM and customized energy storage solutions for customers.
