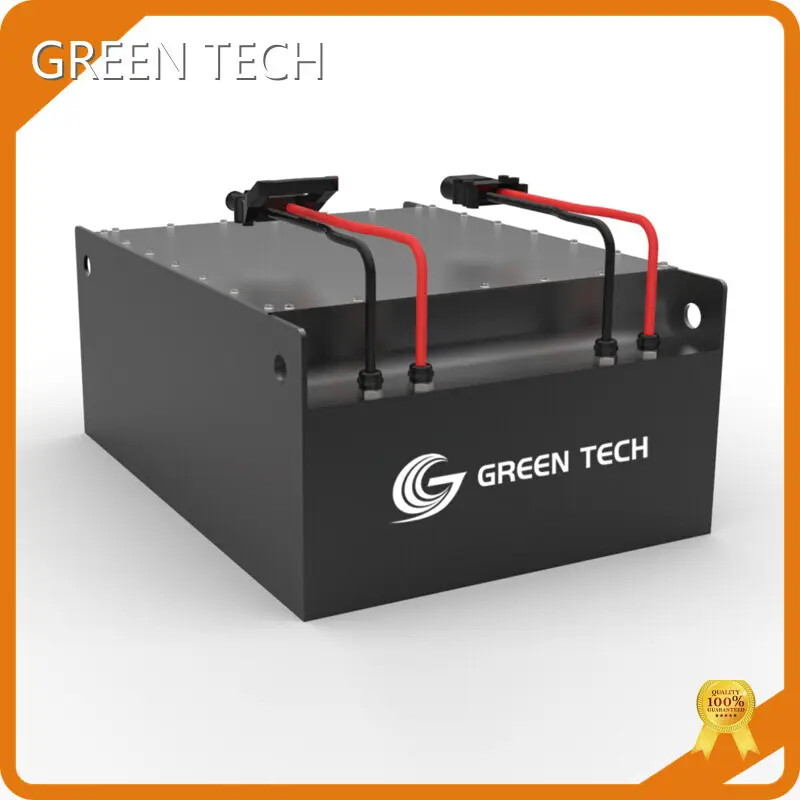

Household Solar Batteries Brand Supply

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V5000-F
Energy storage	5.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	250A
Max. Continuous Discharge Current	250A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	190kg
Dimensions(WxDxH)	645x565x245(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· Dedicated R&D team: our R&D members are elites who have been engaged in the manufacturing of household solar batteries in the industry for many years. They have rich experience are dedicated to solving technical problems of the product.

· The product is fabricated under strict quality control and its quality is stable enough.

· In the highly competitive market, has always maintained a high sense of responsibility and a high level of management.

Company Features

· takes pride that we are the undisputed and reliable producer in designing and manufacturing household solar batteries for many years.

· We have an exceptional team of developers. They have proven records of success and many industry achievements and strictly adhere to the highest standards of development.

· We put both business success and environment protection as our priority. During production, we will seek quality yet more environmentally friendly materials so as to achieve sustainable development.

Application of the Product

household solar batteries is one of the main products of With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers.

always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
