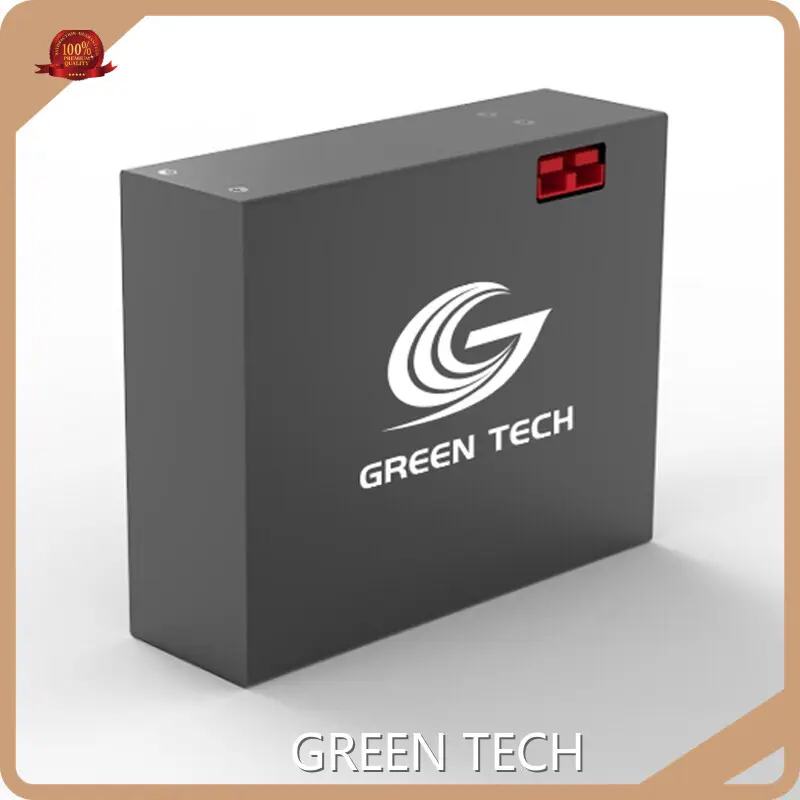

Household Solar Battery Cost 1.0kWh 1
Household Solar Battery Cost 1.0kWh 1

Household Solar Battery Cost 1.0kWh

Series:
EM Series
Max. Continuous Discharge Current:
50A
Max. Continuous Charge Current:
50A
Energy storage:
1.0kWh
Discharge Cut-off Voltage:
20Vdc
Inquiry

Company Advantages

· household solar battery cost adopts the smooth and high-efficiency manufacturing process.

· A series of quality tests are conducted on the entire range to seek out any possible defect.

· Our after-sales team will be 24 hours online to answer all your questions about household solar battery cost.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-24V1000-E

Energy storage

1.0kWh

Nominal Voltage

24Vdc

Maximum Charge Voltage

29Vdc

Discharge Cut-off Voltage

20Vdc

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

50A

Max. Continuous Discharge Current

50A

Peak Current

100A

Cooling Method

Natural

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

SOC,voltage,current, temperature

Series Connection

Not allowed

Parallel Connection

Up to 10sets

Series-Parallel Connection

Not allowed

Weight

8.5kg

Dimensions(WxDxH)

242x65x173(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Features

· At present, production scale and product quality of household solar battery cost are in the domestic leading position.

· The factory provides a full range of quality inspection solutions throughout production procedures. Inspection solutions include initial production check (IPC) for raw materials' quantity, origins, and quality, and during production inspection (DUPRO) for all workmanship and packaging. The factory has implemented a comprehensive production management control system. This system covers pre-production inspection (PPI), initial production check (IPC), and during production inspection (DUPRO). The implementation of this system has offered a strong guarantee for production efficiency and product quality.

· Our goal is to be the leading household solar battery cost manufacturer. Get price!


Application of the Product

household solar battery cost can meet the different needs of customers.

could customize comprehensive and efficient solutions according to customers' different needs.


Product Comparison

Compared with the same kind of products in the industry, household solar battery cost has the following highlights due to the better technical capability.


Enterprise Advantages

has strong talent resources including experienced technical personnel and high-quality management personnel.

constantly improves the service system and creates a healthy and excellent service structure.

With the business philosophy of 'technological innovation, cooperation and win-win, integrity and efficiency, service first', our company sets up strict management standards and takes constant innovation, and is committed to becoming the most professional enterprise.

Established in becomes a forerunner in the industry depending on the constant exploration and innovation as well as rich industry experience.

are exported to Europe, America, Africa and other countries and regions. And the sales volume is increasing rapidly.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
