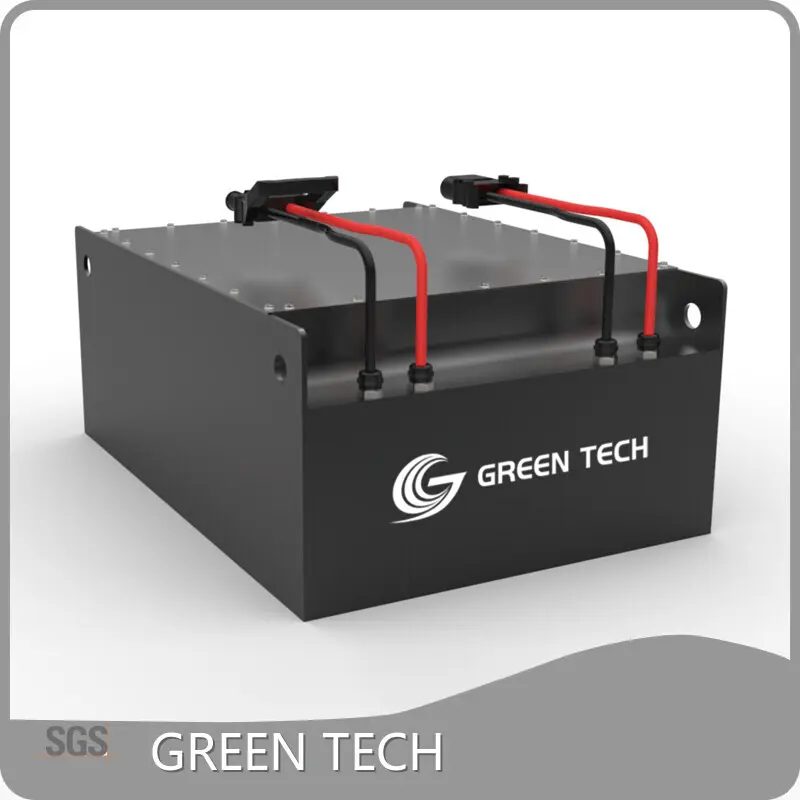

Household Solar Battery Cost 250AOEM

Company Advantages

· Such material of household solar battery cost makes its colors more abundant.

· Being manufactured based on government and industry safety and quality requirements, the product is 100% qualified.

· has realized substantial competitive advantage by consistently producing high-quality household solar battery cost in a timely way.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V5000-F
Energy storage	5.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	250A
Max. Continuous Discharge Current	250A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	190kg
Dimensions(WxDxH)	645x565x245(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· sets us apart from other competitors, and has earned a reputation for quality household solar battery cost and truly customer-centric service.

· has a very strong research and development team.

· The faith of is always keeping moving. Welcome to visit our factory!

Product Comparison

Compared with similar products in the market, the household solar battery cost of has the following main advantages.
