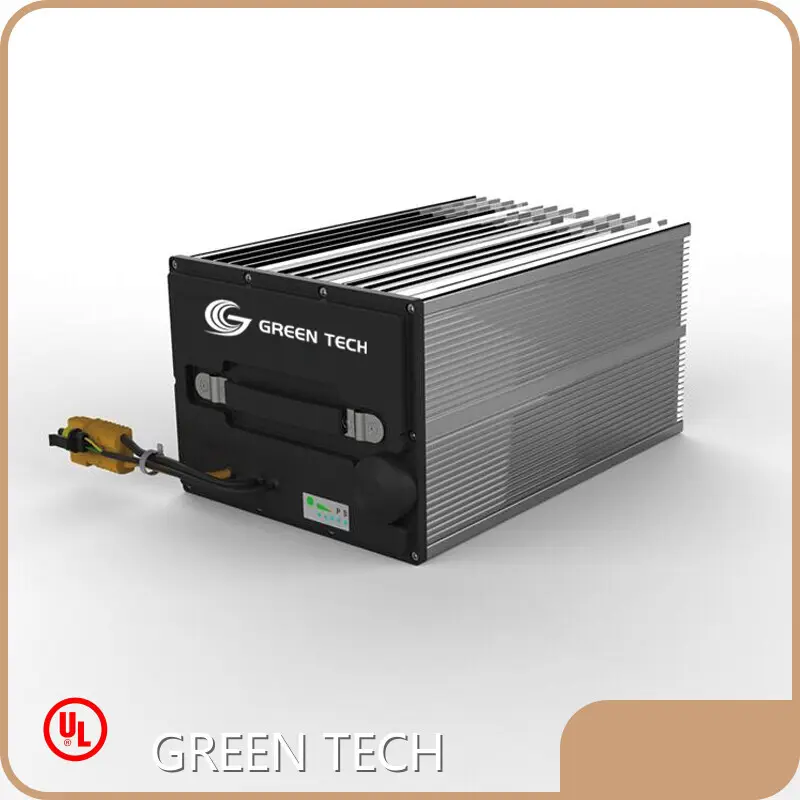

Household Solar Battery Cost 60Vdc

Product details of the household solar battery cost

Product Introduction

household solar battery cost has flexible design. The product quality is fine, has passed the international authentication. Professional after-sales service team in are equipped to serve customers timely.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• was incorporated in We have a development history of years.
• Our company enjoys a superior geographical position, convenient transportation and developed communication. All that creates good external environment for our own development.
• has a group of high-quality technical personnel and a highly efficient production team. Besides, we adopt advanced development tools and concepts for product research and development.
• The social influence of our company has been greatly improved based on the coverage of sales network around the country. In addition, some of the products are exported to America, Africa, Europe and other countries and regions.
If you want further information about please leave your contact information. will reply to you in time!
