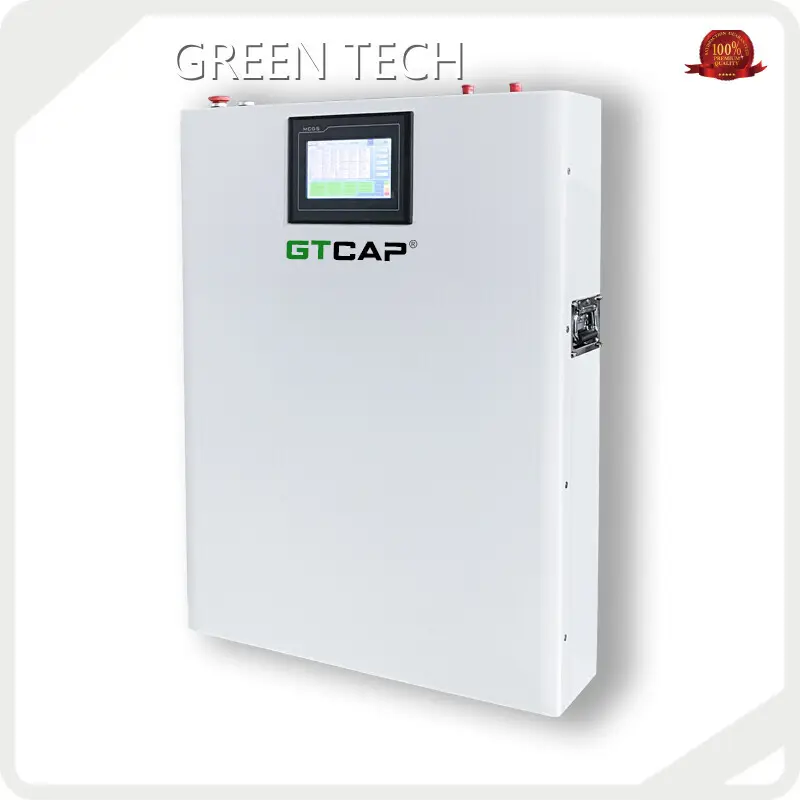

Household Solar Battery Cost at Sale - 115kg

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V14.4K-W
Energy storage	14.4kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	453Vdc
Discharge Cut-off Voltage	292Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Round Trip Efficiency*1	96%
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Communication	CANbus
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

Weight	115kg
Dimensions(WxDxH)	700x840x194(mm)
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· household solar battery cost captures the attention of customers with its functional and aesthetic design.

· Quality and reliability are the basic characteristics of the product.

· respects the individuality of the its business partners.

Company Features

· After participating in the household solar battery cost industry for many years, is highly recognized.

· introduced many top technicians in household solar battery cost industry.

· We never change our persistence in producing high-quality household solar battery cost.

Application of the Product

household solar battery cost is widely used in the industry and is widely recognized by customers.

has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
