Product details of the household solar battery cost


Quick Overview

To attract more customers, it is also necessary for to attach great importance to the design of household solar battery cost. The service life of each product exceeds the industry level. As long as there is request for help about design or other things, will be ready to help for our customers.


Product Information

Compared with similar products, the household solar battery cost of is more strict in the selection of raw materials. The specific aspects are as follows.

Inverters 6kW-8kW-10kW



Parameter

GT-EST06KH

GT-EST08KH

GT-EST10KH

Efficiency

Max Efficiency

>98 2%

>98 2%

>98 2%

PV Input



Max. PV input power(W)

7800

10400

13000

Max. PV input voltage(V)

1000

1000

1000

MPPT Operation Voltage Range (V)

180-950

180-950

180-950

Number of MPPT/PV Strings

2/1

2/1

2/1

Max. PV input current(A)

15/15

15/15

15/15

Short- circuit current of PV input( A)

18/18

18/18

18/18

Battery





Max Input/Output Voltage(V)

550

550

550

Operating Voltage Range(V)

180-550

180-550

180-550

Max Charge/Discharge Current(A)

25/30

25/30

25/30

Max Input/Output Power(W)

6000/6000

8000/8000

10000/10000

Battery Type

Li-ion/Lead-acid

AC Input and Output



Rated Power(W)

6000

8000

10000

Max. Apparent AC Power(VA)

6000

8000

10000

Nominal AC Voltage(Vac)

380,3L/N/PE

380,3L/N/PE

380,3L/N/PE

AC Power Frequency ( Hz)

50/60

50/60

50/60

Max. AC Output Current(A)

10

12

15

Power Factor Range

~1 (Adjusta

ble from 0.8 leading

to 0.8 lagging)

OutputTHDi(@Nominal Output)

<3%

<3%

<3%

Genaral Data

Operating Temperature

-25C …+60C(>45C derating)

Range Topology

Transformerless

Cooling Method

Natural convection

Ingress Protection Rating

IP65

Relative Humidity

0-100%, no condensation

DC Connection Type

MC/ Amphenol/ Phoenix

AC Connection Type

Plug-in Connector

Display

LCD

Communication With Portal

RS485 (WiFi/GPRS Optinal)

Communication With BMS

CAN

Communication With Meter

RS485

Certification

Safety

IEC62109-1/-2

EMC

EN61000-6-1/-2/-3,IEC61000

On- Grid standard

AS4777.2:2020 ,NRS097-2-1:2017 ,PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

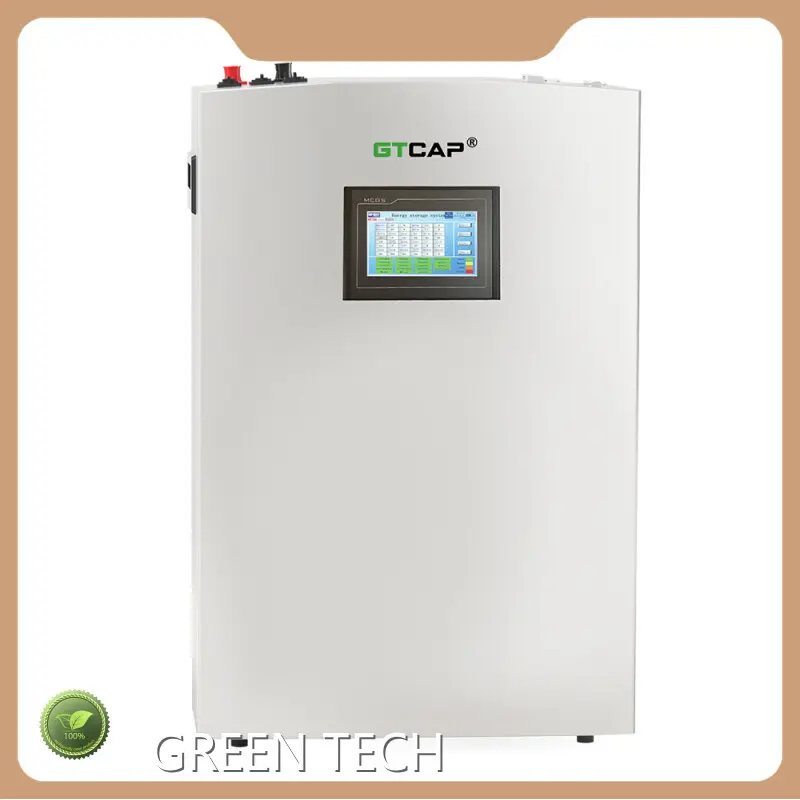

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number

GTEM-400V14.4K-W

GTEF-345V10K-W

Energy storage

14.4kWh

10.3kWh

Nominal Voltage

400V/DC

345.6V/DC

Maximum Charge Voltage

453V/DC

390V/DC

Discharge Cut-off Voltage

292V/DC

300V/DC

ESR/AC @1KHz 50% SOC

<150mΩ 50A

<100mΩ 15A

Max. Continuous Charge Current

50A

15A

Max. Continuous Discharge Current

50A

30A

Round Trip Efficiency

96%

97.7%

Charge Temperature

0 C~ + 5 5 C

0 C~ + 4 5 C

Discharge Temperature

-20C~+60C

-30C~+60C

Self- discharge Rate

2% per month

2% per month

Recommended Depth of Discharge

≤90%

≤90%

Maximum Depth of Discharge

100%

100%

Cooling Method

Natural

Natural

Mounting Options

Wall/floor

Wall/floor

Shell Material

Metal & ABS plastic

Metal & ABS plastic

Communication

CANbus

CAN,RS485

Monitoring Data

System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage

Compliance Information



Certificate Options

IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W
STC*
NOCT*
STC*
Thermal characteristics

Module type





YLxxxDF54e/2(xxx=Pmax)

Power output

Pmax

W

390

395

400

405

410

415

Power output tolerances

△Pmax

W

      0/+5

Module efficiency

ηm

%

19.97

20.23

20.48

20.74

21.00

21.25

Voltage at Pmax

Vmpp

V

30.27 30.42 30.56 30.71 30.86 31.00

Current at Pmax

Impp

A

12.89 12.99 13.09 13.19 13.29 13.39

Open-circuit voltage

Vac

V

36.80

36.90

37.00

37.10

37.20

37.30

Short-circuit voltage

Isc

A

13.68

13.77

13.86

13.95

14.04

14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output

ηm

%

296.85

300.63

304.34

308.17

312.03

315.80

Voltage at Pmax

Vmpp

V

28.87

29.01

29.01

29.14

29.43

29.56

Current at Pmax

Impp

A

10.28

10.36

10.44

10.52

10.60

10.68

Open- circuit voltage

Voc

V

34.98

35.08

35.17

35.27

35.36

35.46

Short- circuit voltage

Isc

A

11.02

11.09

11.17

11.24

11.31

11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output

Pmax

%

426.86

432.33

437.80

443.27

448.75

454.22

Voltage at Pmax

Vmpp

V

30.27

30.42

30.56

30.71

30.86

31.00

Current at Pmax

Impp

A

14.10

14.21

14.33

14.43

14.54

14.65

Open- circuit voltage

Voc

V

36.80

36.90

37.00

37.10

37.20

37.30

Short- circuit voltage

Isc

A

14.97

15.07

15.17

15.27

15.37

15.47

*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2

Nominal operating cell temperature

  NOCT

C

39±2

Temperature coefficient of Pmax

γ

% / C

-0.35

Temperature coefficient of Voc

β

% / C

-0.28 0.05

*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Information

With sophisticated technology and considerate service, always leads the household solar battery cost industry. Our company has cultivated a group of professional technical and management teams. They have a keen sense of customers' feelings and needs, which enables them to provide technical support quickly and flexibly. Our goal is always to provide the best service and exquisite household solar battery cost. Call now!
We have high production efficiency, and we look forward to the cooperation with you.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
