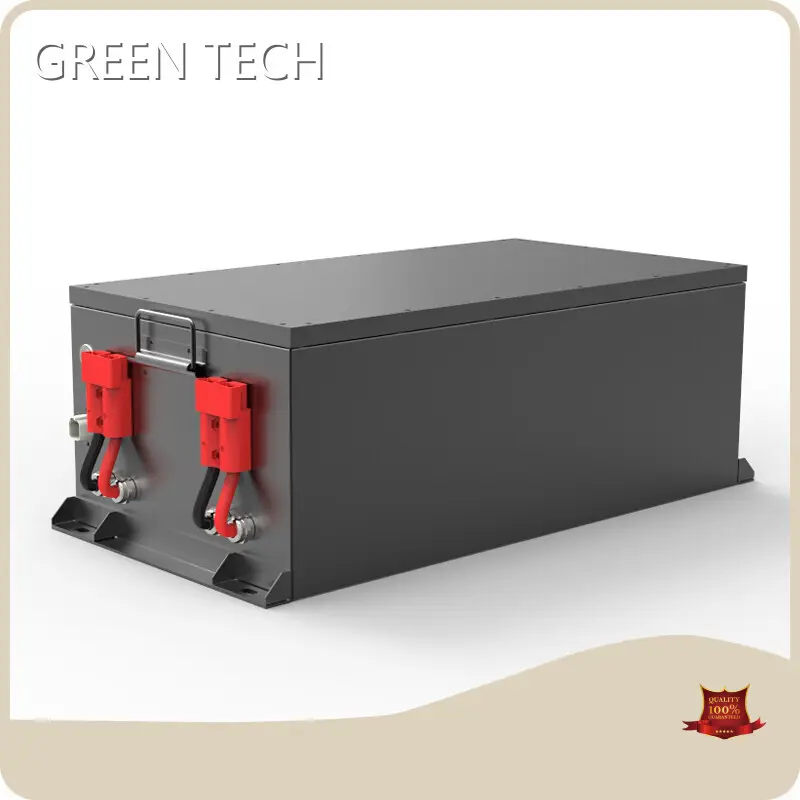

Long Lasting Energy Storage Solution - 6.5kWh

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V6500-G
Energy storage	6.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	75kg
Dimensions(WxDxH)	940x400x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· energy storage solution is famous for its delicate and functional design.

· The product has been given a rigorous quality evaluation and inspection before shipment.

· powerful sales network platform provides powerful protection for quality products.

Company Features

· is one of the famous companies in China. We are active in the market research, production, and distribution of energy storage solution.

· The factory owns a broad range of existing manufacturing facilities. These facilities are highly efficient and guarantee consistent product quality. They have given us great flexibility in producing all kinds of products including energy storage solution.

· It is the goal of our company to continuously create and develop new products, always providing customers with the latest trends.

Application of the Product

The energy storage solution produced by is widely used in the industry.

We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
