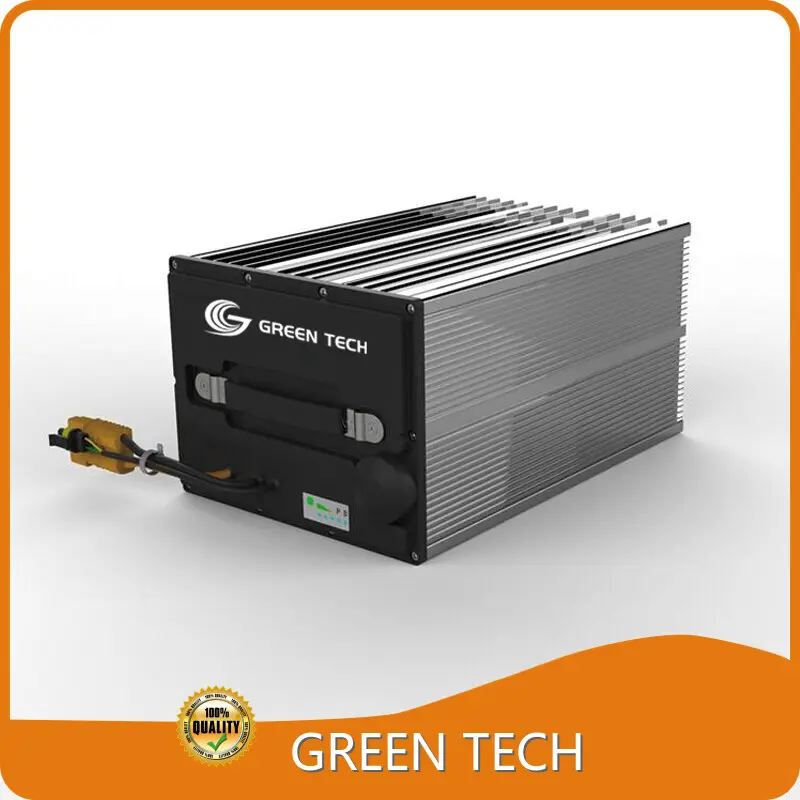

Long Lasting Graphene Batteries for Electric Cars for Hospital

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-60V1560-M
Energy storage	1560Wh
Nominal Voltage	60Vdc
Maximum Charge Voltage	71.4Vdc
Discharge Cut-off Voltage	47.6Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	20kg
Dimensions(WxDxH)	230x180x360(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· graphene batteries for electric cars is fabricated from optimum raw material supplied from top-grade vendors.

· Our professional quality check team conducts strict quality inspections for the sake of high quality.

· simple and efficient one-stop marketing service system can let customers trust us all the time.

Company Features

· Aided by highly advanced technology, is a wide famous exporter in the field of graphene batteries for electric cars.

· Our products, including graphene batteries for electric cars, have been well exported to South Asia, Africa, North America, South America, and Oceania after years of market exploration. Now, we have earned many loyal customers from different countries.

· can supply the very best choice depending on customers' needs. Please contact.

Application of the Product

The graphene batteries for electric cars developed by is widely used in industry.

With professional service spirit, always provides customers with reasonable and efficient one-stop solutions.
