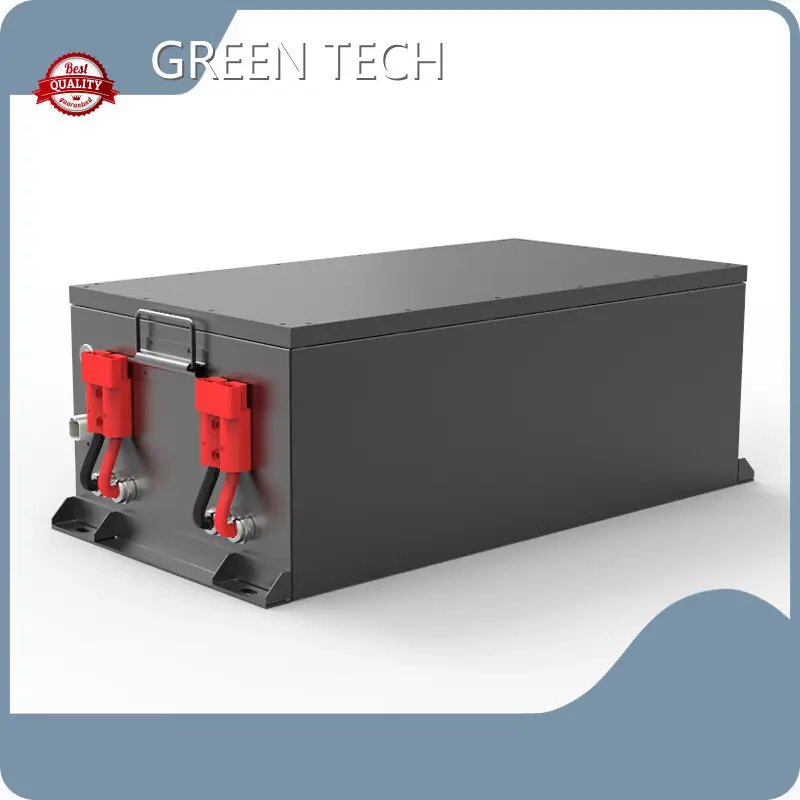

Part Number |
GTEM-48V4500-G |
4.5kWh |
|
Nominal Voltage |
48Vdc |
Nominal Capacity |
130Ah |
Maximum Charge Voltage |
58.8Vdc |
Discharge Cut-off Voltage |
40Vdc |
ESR/AC @1KHz 50% SOC |
<30mΩ |
Max. Continuous Charge Current |
200A |
Max. Continuous Discharge Current |
200A |
Absolute Peak Current 3s |
400A |
Discharge Temperature |
-20℃~+60℃ |
Charge Temperature |
0℃~+55℃ |
Cooling Method |
Natural cooling |
Operating Humidity |
0~90% RH Non-condensing |
Cells Self-discharge Rate |
2% per month |
Projected Cycle Life ( 25℃) |
20,000 times |
Recommended Depth of Discharge |
≤90% |
Maximum Depth of Discharge |
100% |
Shell Material |
Metal & ABS plastic |
Monitoring Data |
Module voltage,SOC |
Indicator light display |
Capacity % |
Environmental Protection |
IP65 |
Storage Conditions |
-20℃~+40℃ 25% ~ 95%RH SOC>30%,one full charge needed per two months |
Weight |
55kg |
Dimensions(WxDxH) |
720x355x252(mm) |
Mount Options |
On floor |
Compatible Protocol: CAN, RS485
Company Advantages
· power storage solutions has been paid 100% attention from the internal structure to the appearance.
· This product has a long service life while delivering constantly high quality.
· In our costumer's conclusion, power storage solutions is highly marketable.
Company Features
· The market coverage, market share, product sales, sales rate, and other indicators of are in the leading position in the power storage solutions industry.
· Our R&D team has accumulated rich experience in developing power storage solutions.
· In an effort to provide world class power storage solutions services to our customers, we have joined together some of the best and the brightest people in our industry to form a cohesive unit whose main goal is Superior Results for our customers and helping them succeed in their business. Contact!
Application of the Product
The power storage solutions produced by our company is widely recognized by customers and widely used in field.
is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
Welcome, Shanghai Green Tech (GTCAP) is a supercapacitor battery manufacturer and energy storage solutions provider,
offering OEM, ODM and customized energy storage solutions for customers.
