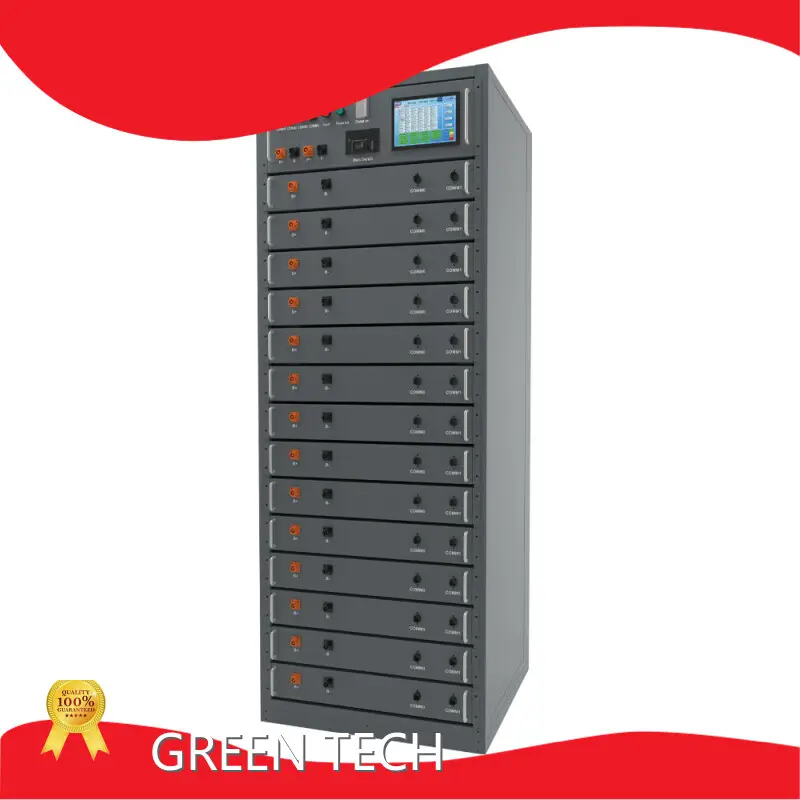

Made Deep Cycle Boat Battery 806.4Vdc for Hospital

Series:
EF Series
Maximum Charge Voltage:
806.4Vdc
Max. Continuous Charge Current:
150A
Discharge Cut-off Voltage:
604.8Vdc
Dimensions(WxDxH):
801x832x2166(mm)
Inquiry

Product details of the deep cycle boat battery


Quick Detail

The deep cycle boat battery is pretty and elegant in appearance. The product has passed all relative certificates of quality. Relative deep cycle boat battery services will all be provided to customers.


Product Information

Compared with similar products, our deep cycle boat battery is provided with the following competitive advantages.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-716V100K-R

Energy storage

150.5kWh

Nominal Voltage

716.8Vdc

Maximum Charge Voltage

806.4Vd.c (Recommended high voltage limit:784V)

Discharge Cut-off Voltage

604.8Vd.c (Recommended low voltage limit: 627.2V)

ESR/AC @1KHz 50% SOC

<150mΩ

Max. Continuous Charge Current

150A

Max. Continuous Discharge Current

150A

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10,000 times(70%EOL)

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

IP20 Indoor

Shell Material

Metal

Parallel Connection

 No limited ( add controller box )

communication

CAN, RS485, LAN

Weight

1560kg

Dimensions(WxDxH)

801x832x2166(mm)

Mount Options

On floor

Certificate Options
