Latest machining techniques are used in manufacturing graphene battery for ev. Its quality meets the requirements of high quality standards and is certified. has been focusing on the business of offering graphene battery for ev.

Product Parameters

General Characteristics

Mechanical Specifications

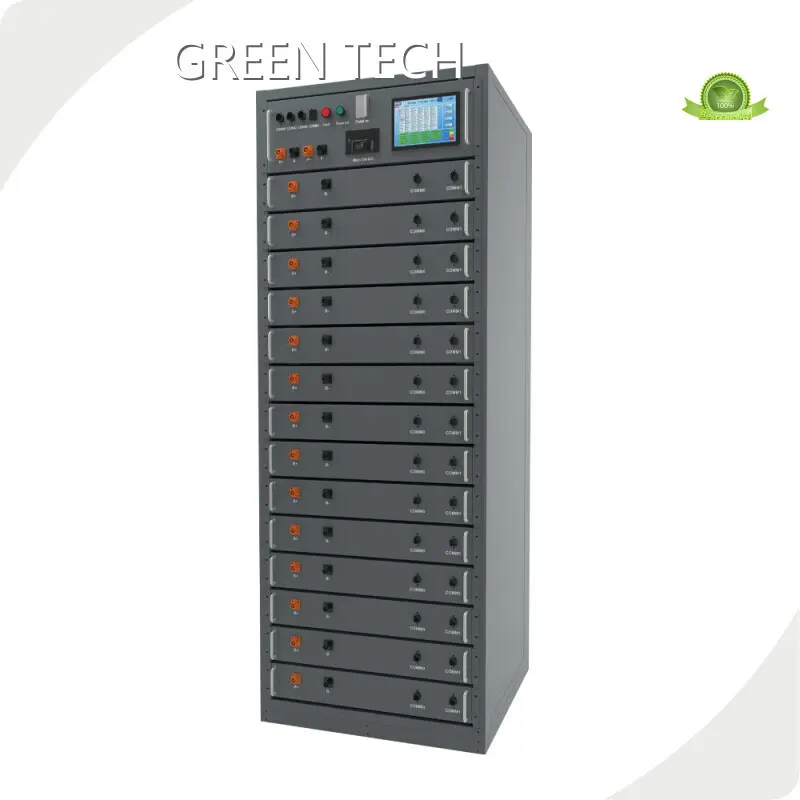

Part Number	GTEF-716V100K-R
Energy storage	150.5kWh
Nominal Voltage	716.8Vdc
Maximum Charge Voltage	806.4Vd.c (Recommended high voltage limit:784V)
Discharge Cut-off Voltage	604.8Vd.c (Recommended low voltage limit: 627.2V)
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times(70%EOL)
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	1560kg
Dimensions(WxDxH)	801x832x2166(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantage

• has obvious geographical advantages with great traffic convenience.
• was built in Having constantly explored for years, we are now a modern enterprise with large scale and mature technology.
• To provide strong technical support for we employed industry experts as technical consultants and established an elite team with rich industry experience.
• are popular in the domestic market. They also enjoy a relatively high reputation in Southeast Asia, Europe, America, and other countries and regions.
Contact us, and you can get new samples at a favorable price!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
