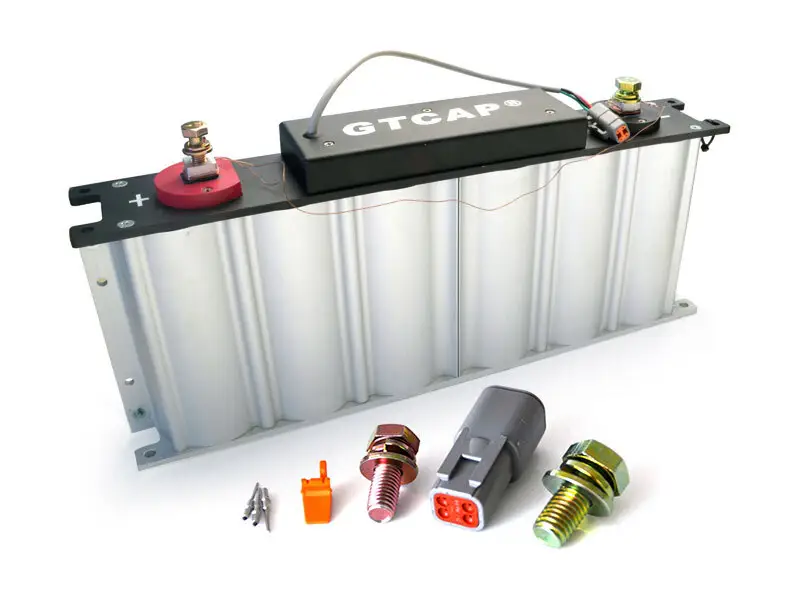

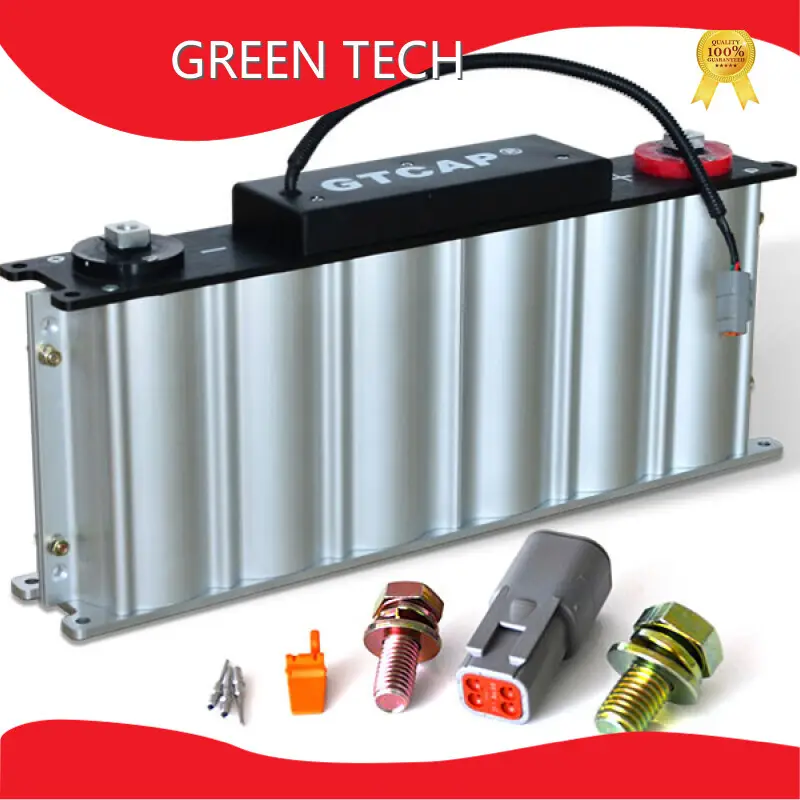

Made Panel Capacitor Bank 100A for Apartment

Product details of the panel capacitor bank

Product Description

High quality material and independent design immensely raise the reputation for With years of manufacturing experience, we guarantee an unparalleled level of quality of the product. The product is perfectly suited to the customer's application needs and now enjoys a larger market share.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTSM-16V-500FUS
Nominal capacitance	500 F
Capacitance tolerance	+20% / -0%
Rated voltage	16V
Maximum absolute voltage	17V
Maximum series voltage	750V
ESR, DC	1.8mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range(Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8/M10
Recommended torque - terminal	20/30 Nm
Vibration specification	GB-T 11287-2000
Shock specification	GBT 14537-1993
Environmental protection	IP65

Weight	5.7 kg
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm
Usable power density (Pd)	3,590 W/kg

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
