The use of high quality materials and innovative designs gives the user of high voltage capacitor bank excellent performance and long service life. The product has never failed in the aspects of long-lasting performance and durability. employees experienced staff to guarantee the quality of high voltage capacitor bank.

Product Introduction

Our high voltage capacitor bank has the following advantages over peer products.

Product Parameters

General Characteristics

Mechanical Specifications

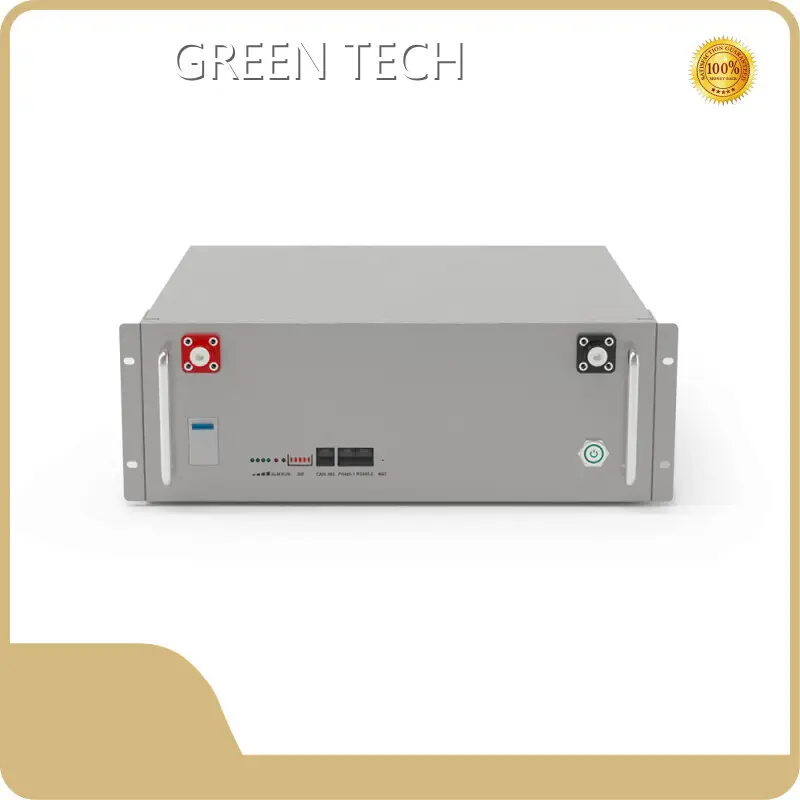

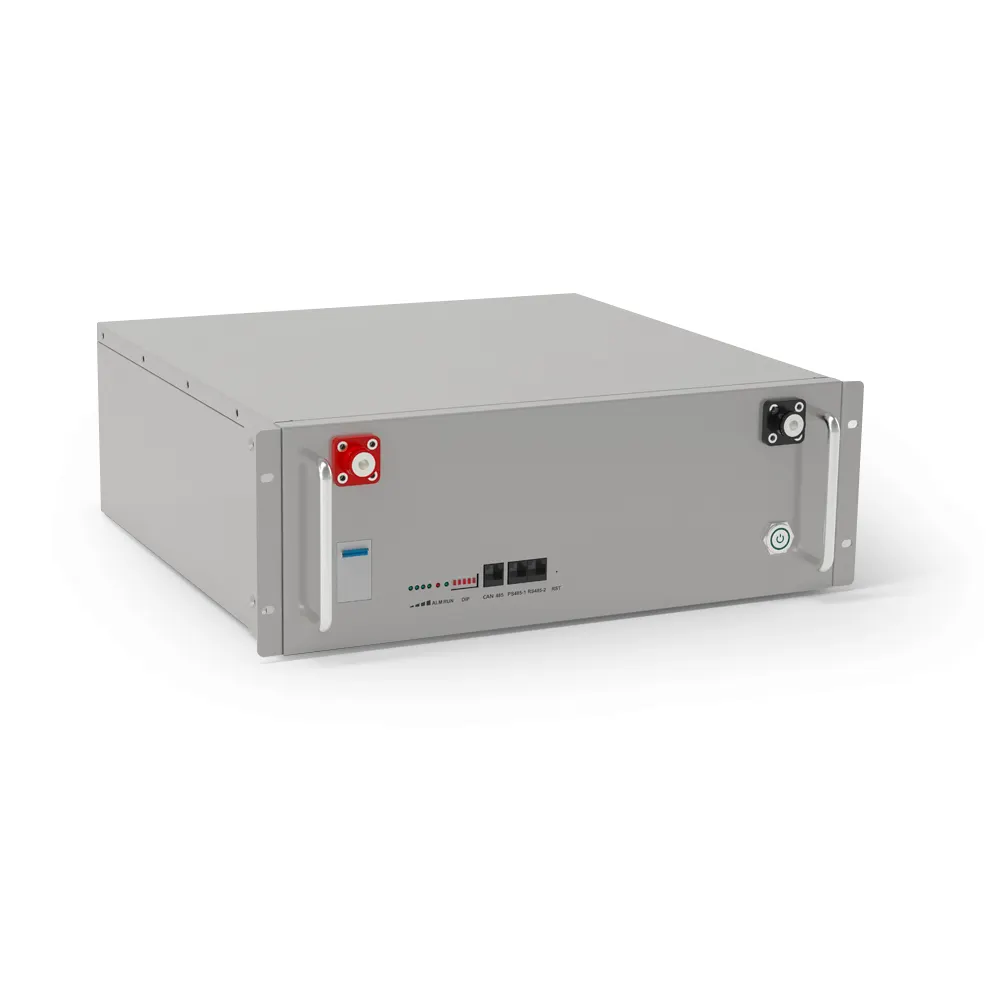

Part Number	GTEM-48V5500-E
Energy storage	5.44kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	39.2Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Round Trip Efficiency	97.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	38kg
Dimensions(WxDxH)	470x462x170(mm)
Operating Humidity	0-90%RH Non-condensing

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 5.5kWh Capess Datasheet

PDF

Company Introduction

wins the market and establishes a reputation for its well-made high voltage capacitor bank. is equipped with many technical talents. We are committed to the highest standards of business and ethical behavior, to fulfilling our responsibilities to the communities which we serve and to the creation of long-term value for all stakeholders on a socially and environmentally sustainable basis.
If interested in our products, you are welcomed to contact customer service staff for consultation!
