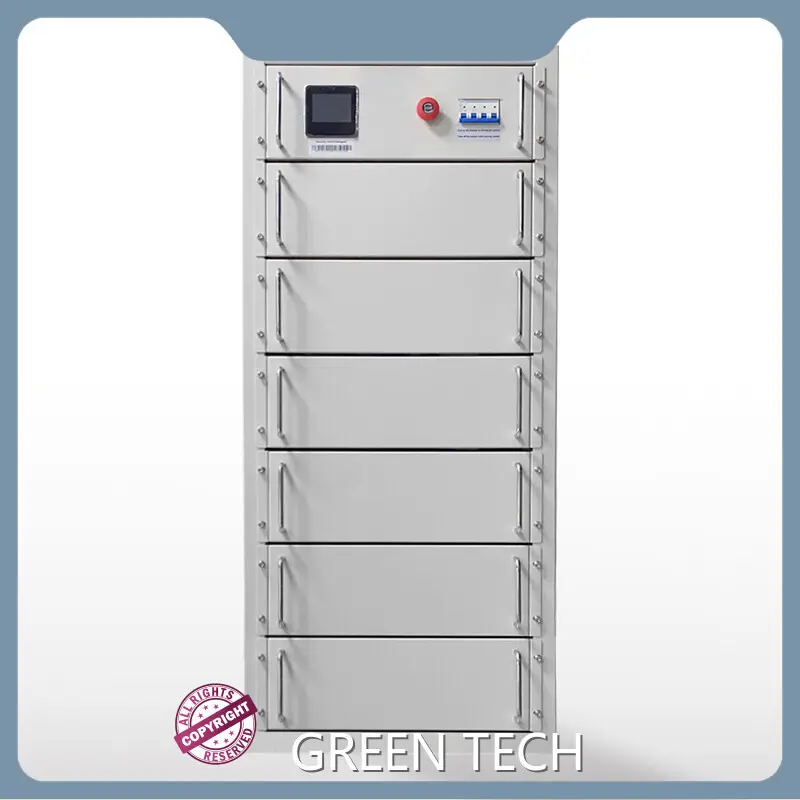

Newest Capacitor Power Bank EM Series for Swimming Pool

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-700V25k-R
Energy storage	25.3kWh
Nominal Voltage	702Vdc
Maximum Charge Voltage	83.16Vdc
Discharge Cut-off Voltage	554.4Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	100A
Discharge rate	2.77C
Max. Continuous Output Power	70kW
Charge Temperature*1	0℃~+55℃
Discharge Temperature*2	-30℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Natural cooling
Shell Material	Metal

Weight	420kg
Dimensions(WxDxH)	560x732x1600(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The capacitor power bank is fabricated using quality raw materials and adopting advanced production technology.

· International management standards are adopted to ensure that the product is of the premium quality.

· sales team will thoroughly explain our service to customers.

Company Features

· has been established for many years, and has gradually grown into a leader in China's capacitor power bank manufacturing industry.

· We have purchased a wide range of brand-new facilities from the best manufacturers in the capacitor power bank industry so that we always have the latest and most cost-efficient technology available.

· Our goal is to provide the best with the most competitive capacitor power bank. Inquiry!

Application of the Product

capacitor power bank is widely used in many industries.

We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
