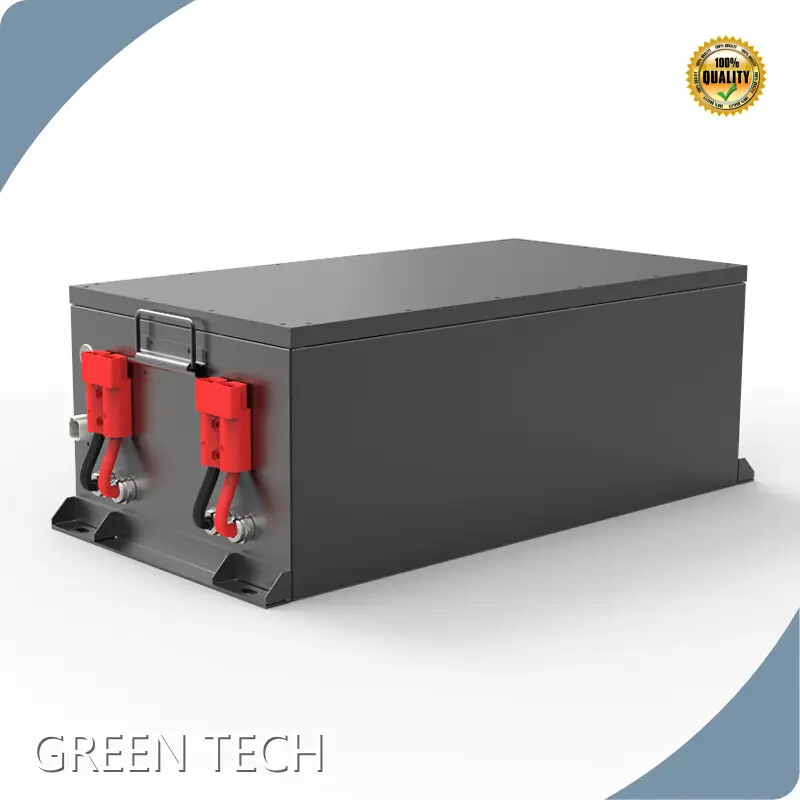

OEM Battery Pack for Household 48Vdc

Company Advantages

· Innovative design concept: From appearance to construction, battery pack for household is designed by our professional designers. They discuss to each other to ensure that each design has the innovative characteristics of industrial standard.

· Before delivering, we closely inspect the quality of the product.

· These products are widely marketed meeting the specific requirements of customers.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· is one of the world’s largest battery pack for household manufacturer and world’s leading integrated service provider.

· The engineering equipment for battery pack for household production in is in a leading position in the local area.

· upholds the idea that enterprise culture plays an important role in the growth of a company. Get quote!

Application of the Product

Our battery pack for household is available in a wide range of applications.

In addition to high-quality products, also provides effective solutions based on the actual conditions and the needs of different customers.

Enterprise Advantages

has an independent technology research and development department that specializes in product research and development and innovation. It provides a guarantee for our products to open more markets.

With a complete service system, can provide timely, professional and comprehensive after-sales service for consumers.

Adhering to the spirit of 'being people-oriented, seeking mutual benefit', our company is willing to work with like-minded friends around the world to realize the ideal and return to the society.

Our company was established in and has developed for years. Through continuous efforts and struggles, we have accumulated a wealth of knowledge and experience in the years of our growth.

products sell well in many parts of the country. They are also exported to the EU, Southeast Asia, the Americas, and other regions.
