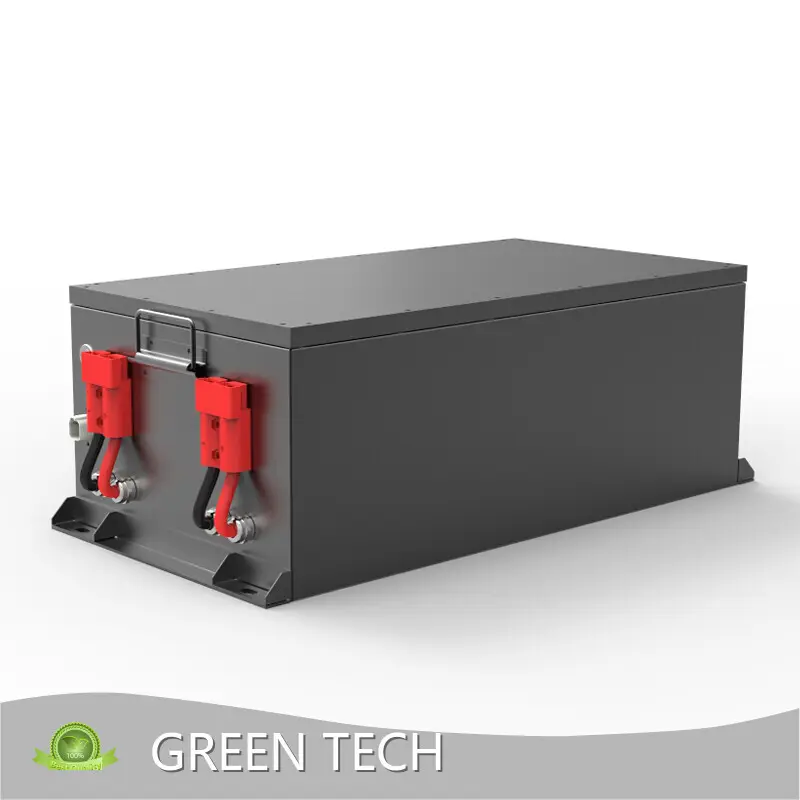

OEM Energy Storage Solution 200A

Weight:
75kg
Series:
EM Series
Maximum Charge Voltage:
58Vdc
Max. Continuous Discharge Current:
200A
Dimensions(WxDxH):
950x400x252mm
Inquiry

Product details of the energy storage solution


Product Description

The offered

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V8500-G

Energy storage

8.5kWh

Nominal Voltage

48Vdc

Maximum Charge Voltage

58Vdc

Discharge Cut-off Voltage

42Vdc

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 10s

300A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

Module voltage,SOC

Indicator light display

Capacity %

Environmental Protection

IP65

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

75kg

Dimensions(WxDxH)

950x400x252(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
