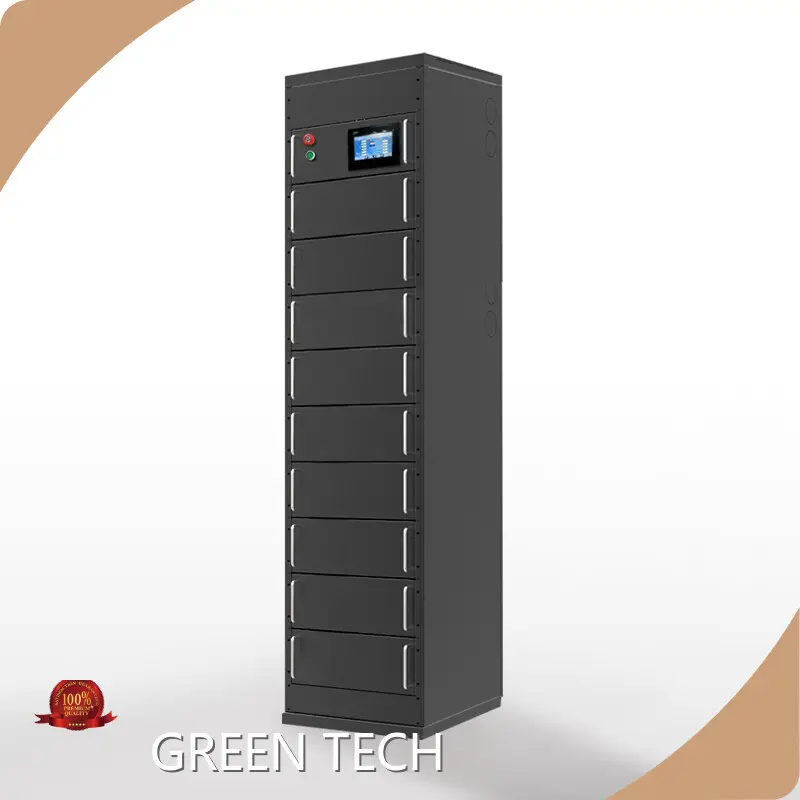

OEM Graphene Battery Price 39.4kWh

Part Number:

GTEG-700V39K-R

Max. Continuous Discharge Current:

200A

Max. Continuous Charge Current:

200A

Energy storage:

39.4kWh

Discharge Cut-off Voltage:

642.6Vdc

Inquiry

Product details of the graphene battery price

Product Information

Keeping pace with latest technology, graphene battery price presents its matchless workmanship. The quality inspection process is conducted by our efficient QC team. The product is easily accepted by the customers due to a convenient sales network.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
*Charge Temperature1**	-20℃~+60℃
*Discharge Temperature2**	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor
