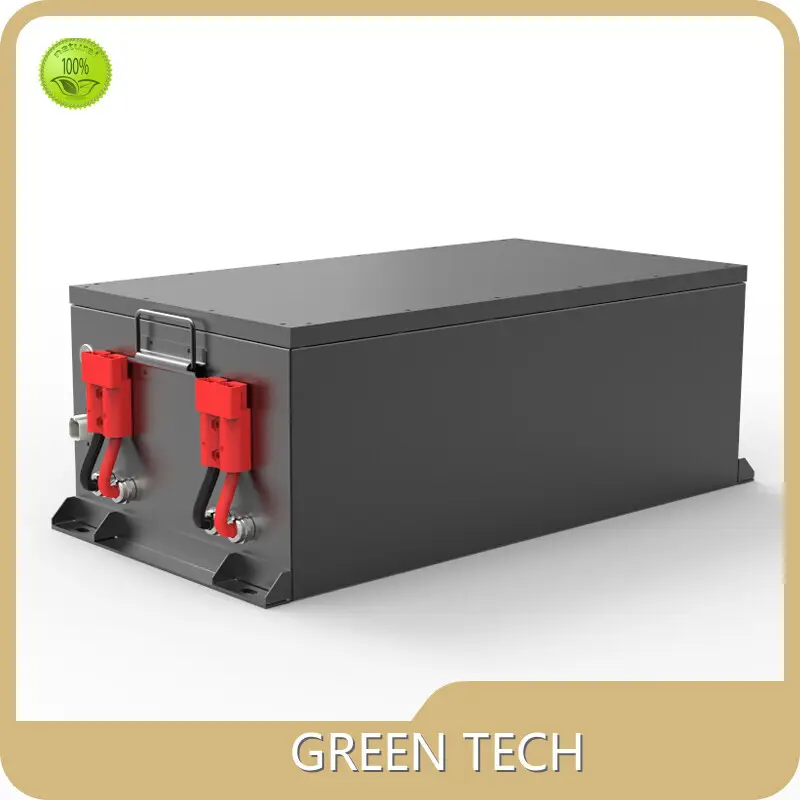

OEM Household Battery Pack 200A

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The unique attributes and designs of household battery pack have a big impact on purchasing decisions.

· This product enjoys long service time for its sophisticated quality.

· The potential application value of the product is worth discovering.

Company Features

· is the leading manufacturer of household battery pack with advanced production machines.

· We have quality-minded staff, including designers, developers, consultants, customer service workers, programmers, and producers. They are well-trained and have the ability and experience to provide solutions and services.

· Our commitment is to identify the best solution for customers' projects, enabling them to become the first choice of their customers.

Application of the Product

household battery pack is widely applicable in the industry.

We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
