Parameter |
GT-EST06KH |
GT-EST08KH |
GT-EST10KH |
|
Efficiency |
Max Efficiency |
>98 2% |
>98 2% |
>98 2% |
|
PV Input
|
Max. PV input power(W) |
7800 |
10400 |
13000 |
|
Max. PV input voltage(V) |
1000 |
1000 |
1000 |
||
MPPT Operation Voltage Range (V) |
180-950 |
180-950 |
180-950 |
||
Number of MPPT/PV Strings |
2/1 |
2/1 |
2/1 |
||
Max. PV input current(A) |
15/15 |
15/15 |
15/15 |
||
Short- circuit current of PV input( A) |
18/18 |
18/18 |
18/18 |
||
Battery
|
Max Input/Output Voltage(V) |
550 |
550 |
550 |
|
Operating Voltage Range(V) |
180-550 |
180-550 |
180-550 |
||
Max Charge/Discharge Current(A) |
25/30 |
25/30 |
25/30 |
||
Max Input/Output Power(W) |
6000/6000 |
8000/8000 |
10000/10000 |
||
Battery Type |
Li-ion/Lead-acid |
||||
AC Input and Output
|
Rated Power(W) |
6000 |
8000 |
10000 |
|
Max. Apparent AC Power(VA) |
6000 |
8000 |
10000 |
||
Nominal AC Voltage(Vac) |
380,3L/N/PE |
380,3L/N/PE |
380,3L/N/PE |
||
AC Power Frequency ( Hz) |
50/60 |
50/60 |
50/60 |
||
Max. AC Output Current(A) |
10 |
12 |
15 |
||
Power Factor Range |
~1 (Adjusta |
ble from 0.8 leading |
to 0.8 lagging) |
||
OutputTHDi(@Nominal Output) |
<3% |
<3% |
<3% |
||
Genaral Data |
Operating Temperature |
-25C …+60C(>45C derating) |
|||
Range Topology |
Transformerless |
||||
Cooling Method |
Natural convection |
||||
Ingress Protection Rating |
IP65 |
||||
Relative Humidity |
0-100%, no condensation |
||||
DC Connection Type |
MC/ Amphenol/ Phoenix |
||||
AC Connection Type |
Plug-in Connector |
||||
Display |
LCD |
||||
Communication With Portal |
RS485 (WiFi/GPRS Optinal) |
||||
Communication With BMS |
CAN |
||||
Communication With Meter |
RS485 |
||||
Certification |
Safety |
IEC62109-1/-2 |
|||
EMC |
EN61000-6-1/-2/-3,IEC61000 |
||||
On- Grid standard |
AS4777.2:2020 ,NRS097-2-1:2017 ,PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4 |

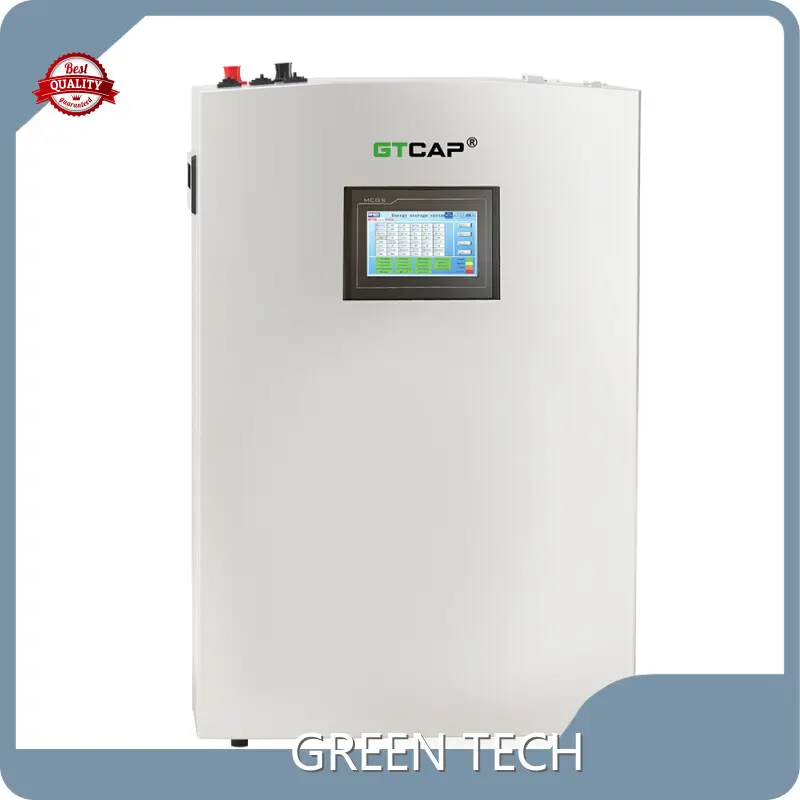

Part Number |
GTEM-400V14.4K-W |
GTEF-345V10K-W |
Energy storage |
14.4kWh |
10.3kWh |
Nominal Voltage |
400V/DC |
345.6V/DC |
Maximum Charge Voltage |
453V/DC |
390V/DC |
Discharge Cut-off Voltage |
292V/DC |
300V/DC |
ESR/AC @1KHz 50% SOC |
<150mΩ 50A |
<100mΩ 15A |
Max. Continuous Charge Current |
50A |
15A |
Max. Continuous Discharge Current |
50A |
30A |
Round Trip Efficiency |
96% |
97.7% |
Charge Temperature |
0 C~ + 5 5 C |
0 C~ + 4 5 C |
Discharge Temperature |
-20C~+60C |
-30C~+60C |
Self- discharge Rate |
2% per month |
2% per month |
Recommended Depth of Discharge |
≤90% |
≤90% |
Maximum Depth of Discharge |
100% |
100% |
Cooling Method |
Natural |
Natural |
Mounting Options |
Wall/floor |
Wall/floor |
Shell Material |
Metal & ABS plastic |
Metal & ABS plastic |
Communication |
CANbus |
CAN,RS485 |
Monitoring Data |
System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage |
|
Compliance Information |
|
|
Certificate Options |
IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014, EN 61000-3-3:2013, RoHS, UN38.3, MSDS |
Module type |
|
|
YLxxxDF54e/2(xxx=Pmax) |
|||||
Power output |
Pmax |
W |
390 |
395 |
400 |
405 |
410 |
415 |
Power output tolerances |
△Pmax |
W |
0/+5 | |||||
Module efficiency |
ηm |
% |
19.97 |
20.23 |
20.48 |
20.74 |
21.00 |
21.25 |
Voltage at Pmax |
Vmpp |
V |
30.27 | 30.42 | 30.56 | 30.71 | 30.86 | 31.00 |
Current at Pmax |
Impp |
A |
12.89 | 12.99 | 13.09 | 13.19 | 13.29 | 13.39 |
Open-circuit voltage |
Vac |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short-circuit voltage |
Isc |
A |
13.68 |
13.77 |
13.86 |
13.95 |
14.04 |
14.13 |
*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3
Power output |
ηm |
% |
296.85 |
300.63 |
304.34 |
308.17 |
312.03 |
315.80 |
Voltage at Pmax |
Vmpp |
V |
28.87 |
29.01 |
29.01 |
29.14 |
29.43 |
29.56 |
Current at Pmax |
Impp |
A |
10.28 |
10.36 |
10.44 |
10.52 |
10.60 |
10.68 |
Open- circuit voltage |
Voc |
V |
34.98 |
35.08 |
35.17 |
35.27 |
35.36 |
35.46 |
Short- circuit voltage |
Isc |
A |
11.02 |
11.09 |
11.17 |
11.24 |
11.31 |
11.38 |
*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.
Power output |
Pmax |
% |
426.86 |
432.33 |
437.80 |
443.27 |
448.75 |
454.22 |
Voltage at Pmax |
Vmpp |
V |
30.27 |
30.42 |
30.56 |
30.71 |
30.86 |
31.00 |
Current at Pmax |
Impp |
A |
14.10 |
14.21 |
14.33 |
14.43 |
14.54 |
14.65 |
Open- circuit voltage |
Voc |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short- circuit voltage |
Isc |
A |
14.97 |
15.07 |
15.17 |
15.27 |
15.37 |
15.47 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Nominal operating cell temperature |
NOCT |
C |
39±2 |
Temperature coefficient of Pmax |
γ |
% / C |
-0.35 |
Temperature coefficient of Voc |
β |
% / C |
-0.28 0.05 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Compatible Protocol: CAN, RS485
Company Advantages
· graphene batteries in cars is exclusively manufactured by our adroit professionals using superior quality raw material and advanced technology.
· By using the advanced inspection equipment in the product, many quality issues of the product can be detected immediately, which has effectively improved the quality.
· continuously deepens the upgrading of graphene batteries in cars to make it more unique and of better quality.
Company Features
· has key competence in the development and manufacture of graphene batteries in cars. We have been committing to this industry for many years.
· Our company is internationally well-known because of the technology strength.
· We have a simple business philosophy. We work closely with our clients to find a perfect combination of products and services. We only work with ISO-certified suppliers who have the right working conditions.
Application of the Product
The graphene batteries in cars developed by is widely used in industry.
insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
