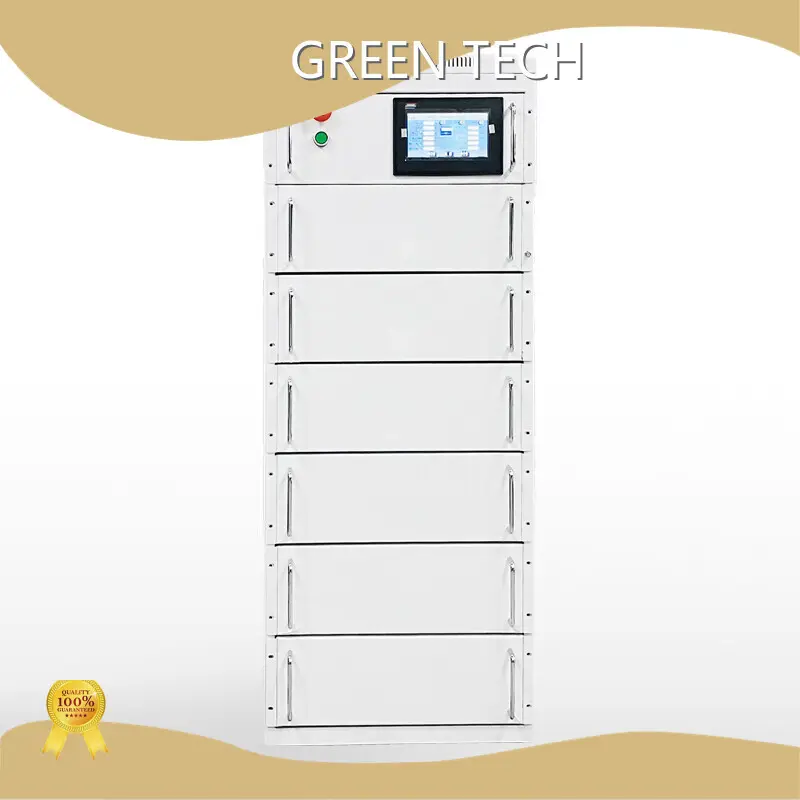

Oem & Odm Power Storage Systems - GTEM-400V50K-R

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V50K-R
Energy storage	50.3kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	448.2Vdc
Discharge Cut-off Voltage	324Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Round Trip Efficiency*1	97.5%
Projected Cycle Life ( 25℃)	10,000 times (70%EOL)
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Cannot be connected in parallel (If parallel connection is required, please inform in advance )

Weight	500kg
Dimensions(WxDxH)	611x735x1487(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· power storage systems is manufactured using latest modern technology.

· The product is 100% qualified in terms of the functionality, specification/size, durability.

· The stable quality supplier chain is a strong guarantee for the quality of products.

Company Features

· has grown into a reliable manufacturer who specializes in the production of power storage systems. We are widely accepted in the industry.

· Our company has achieved fruitful technical outcomes by cause of its strong technical base.

· We are committed to sharing our expertise and passion with customers, delivering the best-tailored products whilst creating long-lasting relationships.

Application of the Product

power storage systems can be applied to different industries, fields and scenes.

has been engaged in the production of for many years and has accumulated rich industry experience. Based on that, we could provide comprehensive and excellent solutions according to actual situations and the needs of different customers.
