Panel Capacitor Bank Inquire now for Home 38kg

Product details of the panel capacitor bank

Product Description

Entire range of this product offered by us is hugely demanded owing to these features. The product has a functionality that can effectively address customers' needs. capital is abundant and it has independent R&D team.

Product Parameters

General Characteristics

Mechanical Specifications

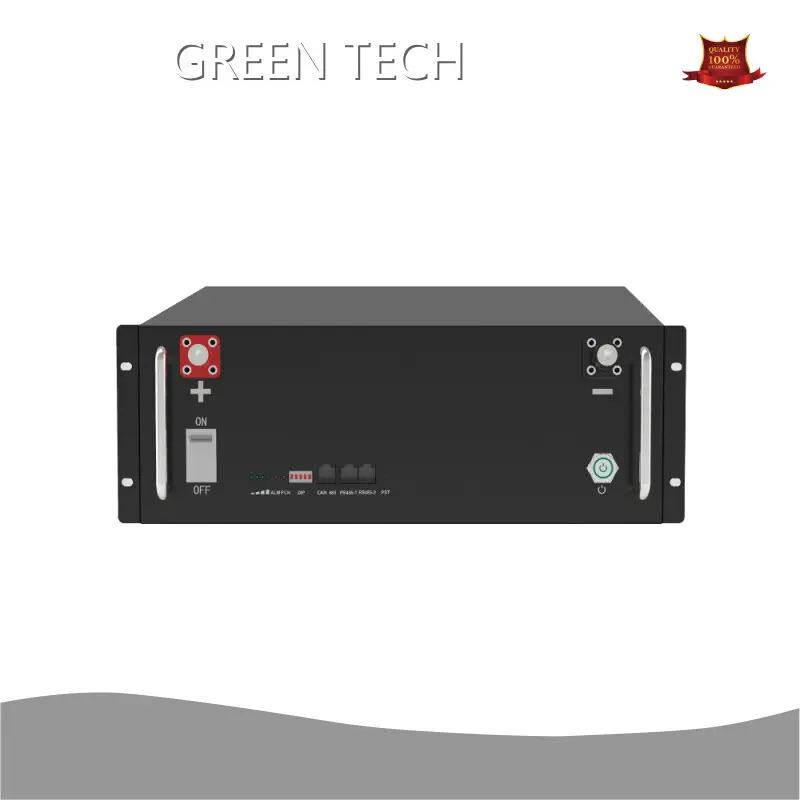

Part Number	GTEF-48V4500-E
Energy storage	4.71kWh
Capacity	92Ah
Nominal Voltage	51.2Vdc
Maximum Charge Voltage	57.6Vdc
Discharge Cut-off Voltage	44.8Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Communication	CAN, RS485
Monitoring Data	System,voltage,current, temperature,SOC,SOH,cells’ voltage
Protection & Alarms	Over charge,over current,over temperature,over discharge
Anti-theft	Intelligent software lock; GPS, displacement lock,buzzer alarm
Projected Cycle Life ( 25℃)	6,000 times
Recommended Depth of Discharge	≤95%
Maximum Depth of Discharge	95%
Shell Material	Metal & ABS plastic
Cooling Method	Natural
Series Connection	Not allowed
Parallel Connection	Up to 16sets (need to clarify when place order)
Series and Parallel Connection	Add controller box (need to clarify when place order)

Weight	38kg
Dimensions(WxDxH)	486x590x133.3(mm)
Mount Options	Standard 19” rack mounted

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantage

• location is close to railways and major highways, which is conducive to the transportation of various products. And there are areas around that could be used for construction.
• are sold in the domestic market and exported to many countries and regions, such as Central Asia and Southeast Asia. They are widely praised by domestic and foreign customers.
• core team members have rich production experience and master the core industry technology.
Dear customer, thanks for your attention to If you have any needs, feel free to contact us. We look forward to cooperating with you.
