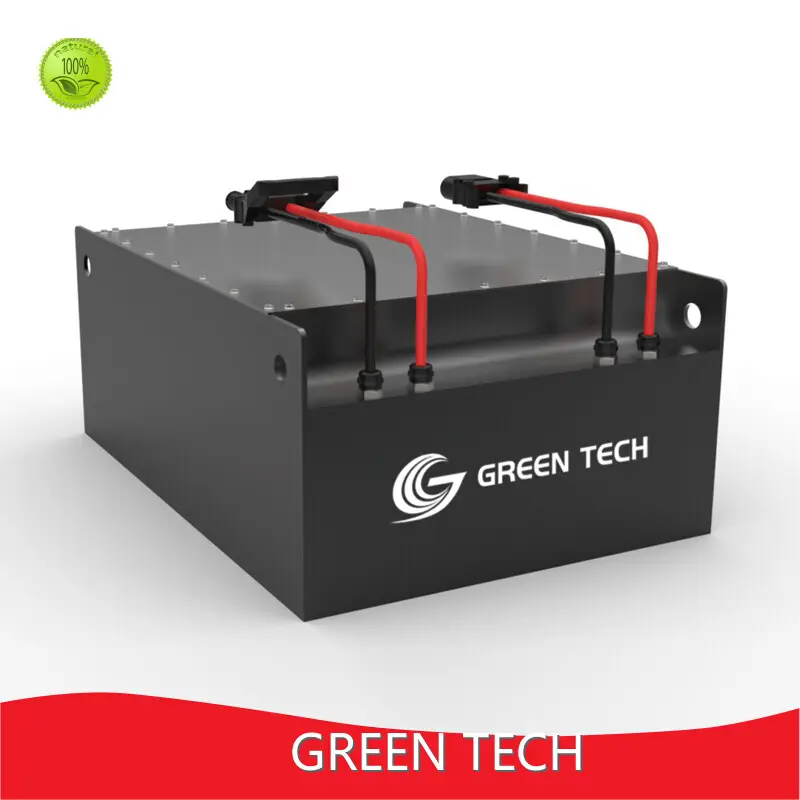

Panel Capacitor Bank Manufacture 20Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V5000-F
Energy storage	5.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	250A
Max. Continuous Discharge Current	250A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	190kg
Dimensions(WxDxH)	645x565x245(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· panel capacitor bank has an appealing and functional design developed by expert team.

· Annual recertification audits verify that its quality standards are maintained.

· With its foreseeable development prospects, this product is worth expanding over the market.

Company Features

· is an experienced producer of panel capacitor bank.

· is equipped with international advanced production equipment.

· intends to occupy the place of business leader. Call!

Application of the Product

The panel capacitor bank produced by has a wide range of applications.

With rich manufacturing experience and strong production capability, is able to provide professional solutions according to customers' actual needs.
