Power Storage Solutions 20kg - Bulk Production -

Product details of the power storage solutions

Product Introduction

Customized power storage solutions is offered by The technical key indicators of power storage solutions products have reached the international advanced level. The market prospect of this product is promising because it can bring huge economic benefits and is favored by customers.

Product Parameters

General Characteristics

Mechanical Specifications

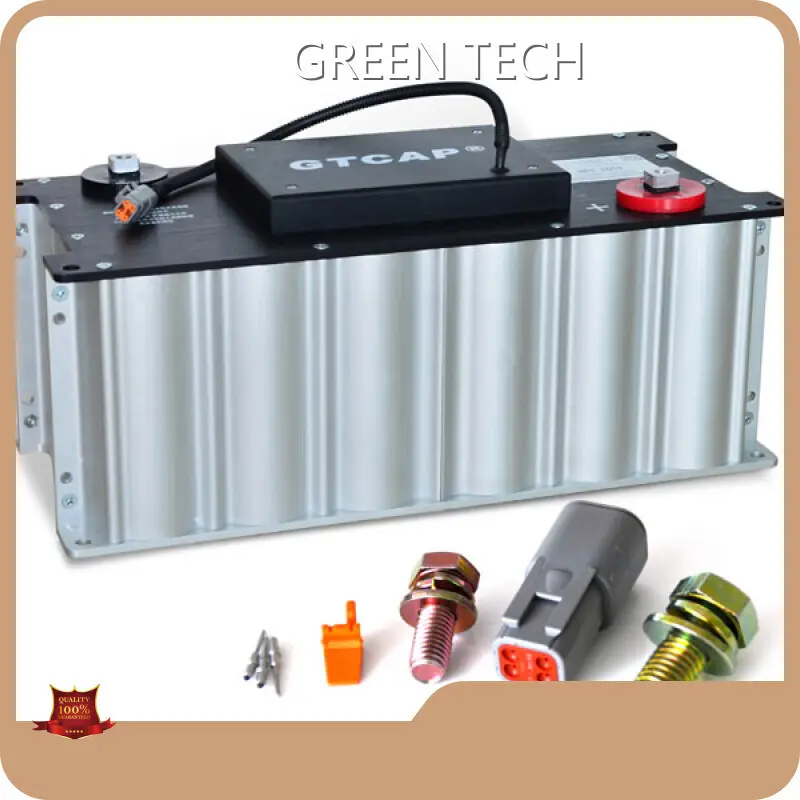

Part Number	GTSM-48V165FUS
Nominal capacitance	125 F
Capacitance tolerance	-10%~~+20%
Rated voltage	48V
Maximum absolute voltage	51V
ESR, DC	5 mΩ
Maximum continuous current (ΔT=40℃)	100 A
Maximum peak current, 1 sec.	2,275 A
Maximum leakage current (after 72hrs @ 25℃)	5.2 mA
Operating temperature range (Cell case temperature)	-40℃ to +65℃
Storage temperature range(Storage uncharged)	-40℃ to +70℃
Power terminals	M8 Screw Hole
Negative Terminal	M10 Screw Hole
Recommended torque - terminal	20/30 Nm
Vibration specification	SAE J2380 ISO16750-2, T14
Shock specification	SAE J2464
Colling	Natural Convection

Weight	20kg
Environmental protection	IP65
Internal temperature sensor	NTC Thermistor
Cell voltage monitoring	Overvoltage Alarm

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
