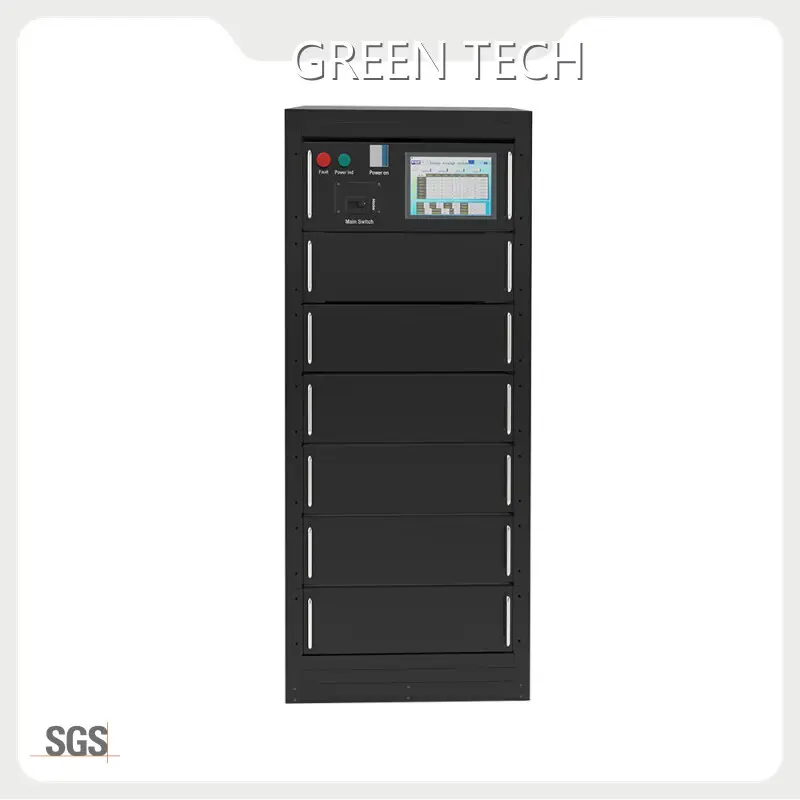

Power Storage Solutions 626Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· The materials of power storage solutions are carefully selected based on customers' specification/size requirements.

· The product is handled with the utmost quality and expertise.

· This product has been widely used in the market and has a broad market prospect.

Company Features

· has independent R&D team and mature production lines to produce power storage solutions.

· The factory has established its own production and management systems. We have a strict production process regulation for each stage, so as to make sure the production is not disrupted.

· We have made a long-term plan for environmental protection and energy conservation. We execute this plan seriously throughout the production stages. And we have achieved progress in reducing greenhouse gases and energy consumption.

Application of the Product

The power storage solutions produced by our company is suitable for various occasions in industry.

is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.
