The production errors of power storage solutions are greatly reduced. The international quality certifications shows the good quality of this product. Supported by our creative service team, the popularity of has been improving.

Product Parameters

General Characteristics

Mechanical Specifications

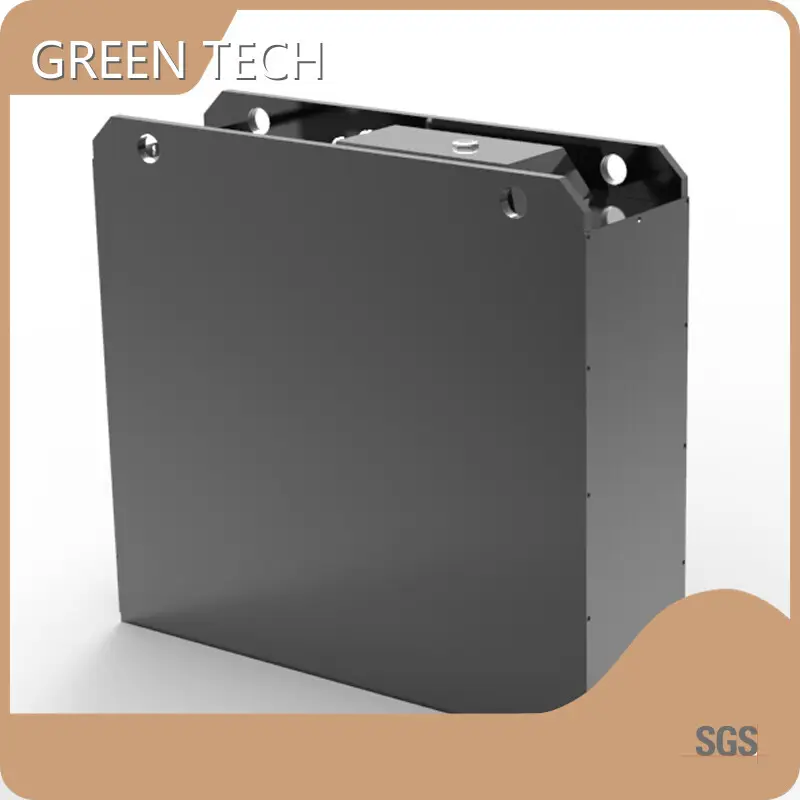

Part Number	GTEG-23V4180-F
Energy storage	4.18kWh
Nominal Capacity	182Ah
Nominal Voltage	23Vdc
Absolute Maximum Voltage	28Vdc
Cut-off Voltage (discharging)	18Vdc
Configuration	10S13P
Pack resistance	< 10 mΩ
Continuous Charge Current	150A
Continuous Discharge Current	150A
Peak Discharge Current	300A
Recommended Depth of Discharge	90%
Maximum Depth of Discharge	100%
Cooling	Natural cooling
Ingress Protection	IP55
Storage Humidity	25% ~ 95%RH
Operating Humidity	0 – 90% RH
Storage Temperature	-20℃~40 ℃

Weight	225kg
Dimensions(WxDxH)	650195600mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• professional technical talents provide a strong guarantee for the R&D and production of high-quality products.
• Our products are of good quality and excellent safety. They are highly praised by consumers and are even exported to all major regions.
• The natural resources around are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
If you have any questions, you may leave your contact information. will get back to you as soon as possible.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
