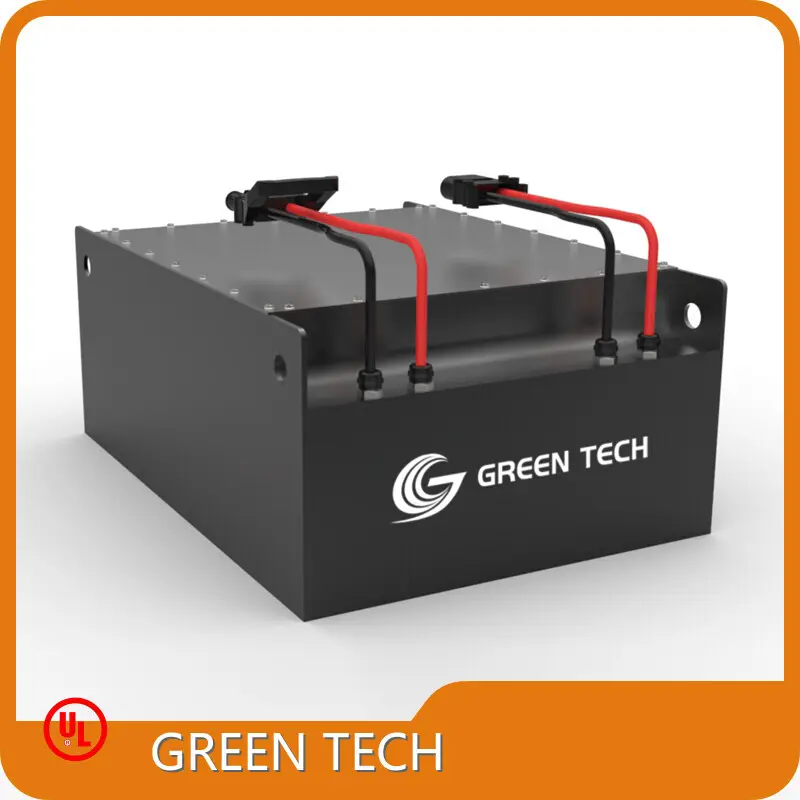

Power Storage Solutions for Aquariums

Part Number:
GTEM-24V5000-F
Max. Continuous Discharge Current:
250A
Max. Continuous Charge Current:
250A
Energy storage:
5.0kWh
Discharge Cut-off Voltage:
20Vdc
Inquiry
Send your inquiry

Product details of the power storage solutions


Product Description

The power storage solutions provides reliable performance, and users won't have to worry about its quality. It gives trouble free performance to the user as they are stringently tested on different quality parameters. has extensive design capabilities, rigorous process, a complete quality control system and good after-sales service.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-24V5000-F

Energy storage

5.0kWh

Nominal Voltage

24Vdc

Maximum Charge Voltage

29Vdc

Discharge Cut-off Voltage

20Vdc

ESR/AC @1KHz 50% SOC

<10mΩ

Max. Continuous Charge Current

250A

Max. Continuous Discharge Current

250A

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Charge Temperature

0℃~+55℃

Discharge Temperature

-20℃~+60℃

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Recommend within 10sets

Monitoring Data

SOC,voltage, module

Weight

190kg

Dimensions(WxDxH)

645x565x245(mm)

Mount Options

Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
