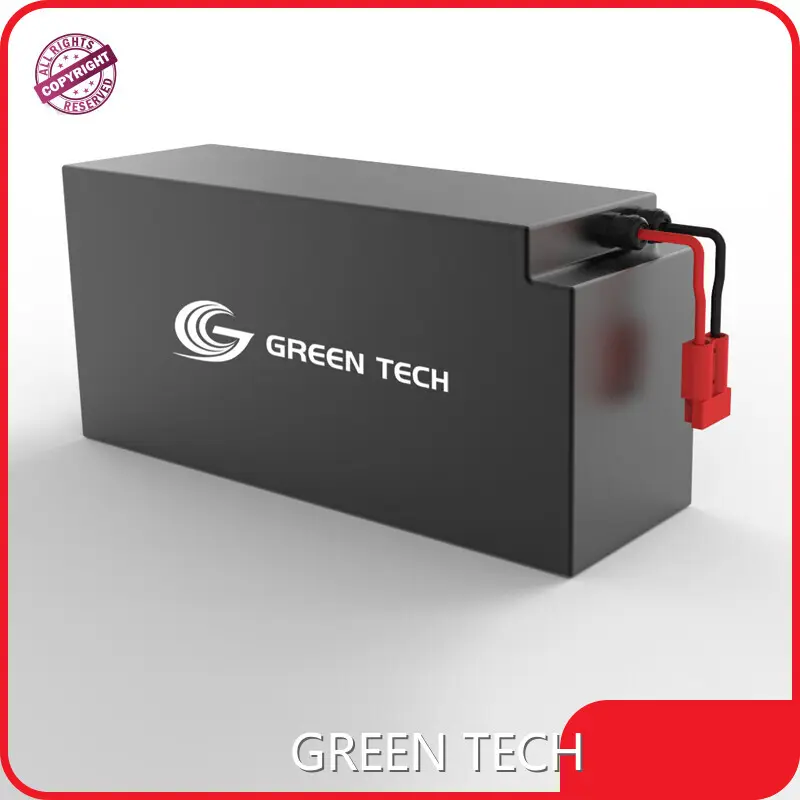

Power Storage Systems 100A

Company Advantages

· power storage systems is designed to maintain a high-grade appearance.

· The product reaches the advanced quality level of the industry.

· The product is widely appreciated by customers for its considerable application prospects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V2500-E
Energy storage	2.5kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<10Ω
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	100A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Round Trip Efficiency*1	96%
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell`s voltage

Weight	55kg
Dimensions(WxDxH)	140x430x200mm
Mount Options	Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· is synonymous with designing and producing high-quality power storage systems. Our development is driven by changing market demands.

· Advanced production technology can fully guarantee the quality of power storage systems. The factory is advanced in science and technology. Our company has established a strict quality system to ensure the quality of power storage systems.

· Cherishing resources and protecting the environment is an eternal commitment from Contact!

Product Details

With a focus on every detail of power storage systems, we strive to create high-quality products.
