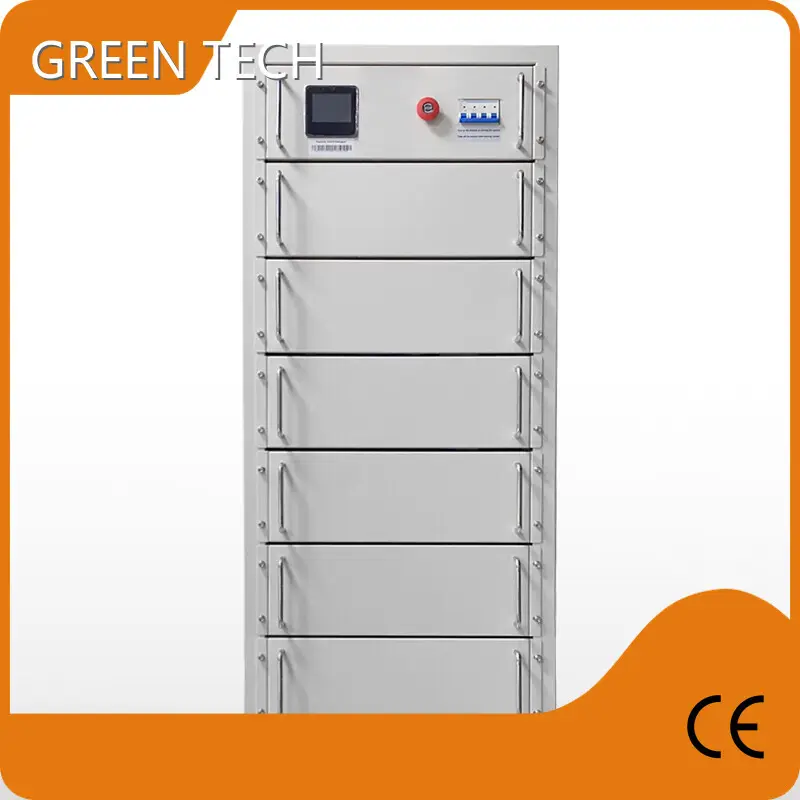

Power Storage Systems Best Brand - 831.6Vdc

Product details of the power storage systems

Product Introduction

power storage systems is fabricated in complete compliance with international production standards. The product has the advantages of good quality and excellent performance. The product is widely recognized for its unique advantages.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-700V25k-R
Energy storage	25.3kWh
Nominal Voltage	702Vdc
Maximum Charge Voltage	83.16Vdc
Discharge Cut-off Voltage	554.4Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	100A
Discharge rate	2.77C
Max. Continuous Output Power	70kW
Charge Temperature*1	0℃~+55℃
Discharge Temperature*2	-30℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Natural cooling
Shell Material	Metal

Weight	420kg
Dimensions(WxDxH)	560x732x1600(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Feature

• Since the establishment, has always been adhering to the service concept to serve every customer wholeheartedly. We receive acclaim from customers by providing thoughtful and caring services.
• Our products are sold well in many countries around the world.
• Our company has a unique geographical advantage, surrounded by complete supporting facilities and convenient transportation.
• Our company has a technical team composed of experienced experts in the industry, and maintains good cooperation with many domestic excellent research institutions. All this provides a solid strength and technical support for our product research and development.
sincerely looks forward to your consultation at all times!
