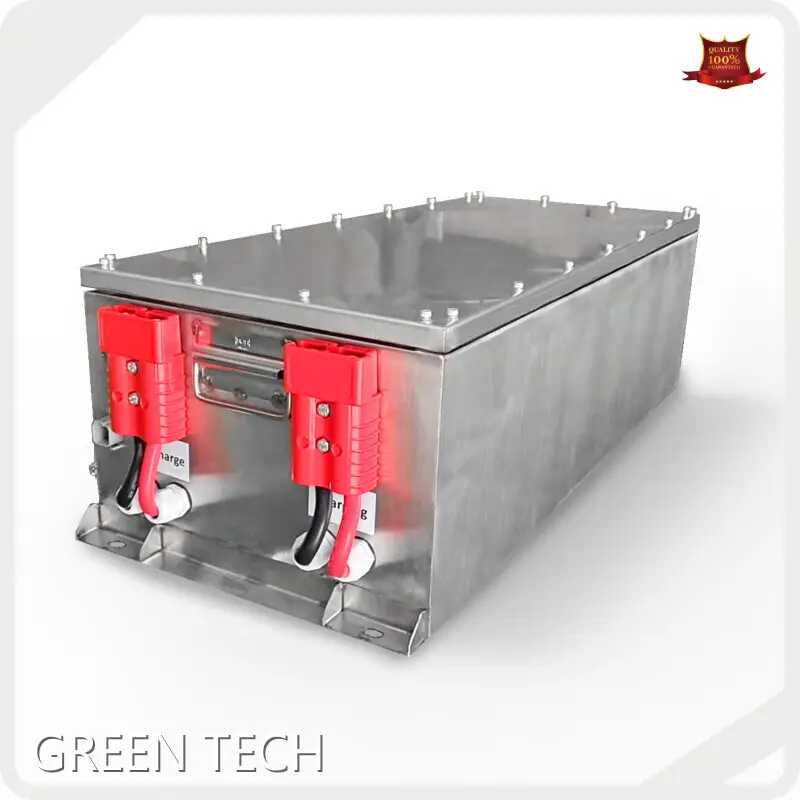

Power Storage Systems Bulk Buy 109.2Vdc

Company Advantages

· power storage systems has a design that can effective shows its uniqueness.

· It is thoroughly inspected to ensure zero defects.

· At present, power storage systems produced by has already applied for national invention patents.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· With advanced expertise in manufacturing power storage systems, has highly recognized and respected in the domestic market.

· has the strict quality system and the power storage systems have the overload test to ensure the quality.

· technology is ready to work with you to resolve all your problems. We would like to bring you the real product benefits and assistance.

Product Details

We are confident about the exquisite details of power storage systems.

Application of the Product

power storage systems can be used in many industries.

always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.

Enterprise Advantages

Our company attaches great importance to talent cultivation. Currently, we have established a staff team of high quality and high efficiency. It is the effective guarantee for the long-term development.

According to the requirements of customers, our company will provide feasible suggestions and services to solve their worries.

In the operation, our company mainly focuses on of people and integrity and we follow the core value of 'pursuit of excellence, cooperation and win-win'. We constantly improve production technology to provide consumers with better products and more professional services. It is our commitment to become a well-known modern enterprise in China.

was successfully established in We have accumulated rich production experience in the past years.

Our product network covers all provinces and regions of the country. It promotes us to sell products to Europe, America, Africa and Southeast Asia.
