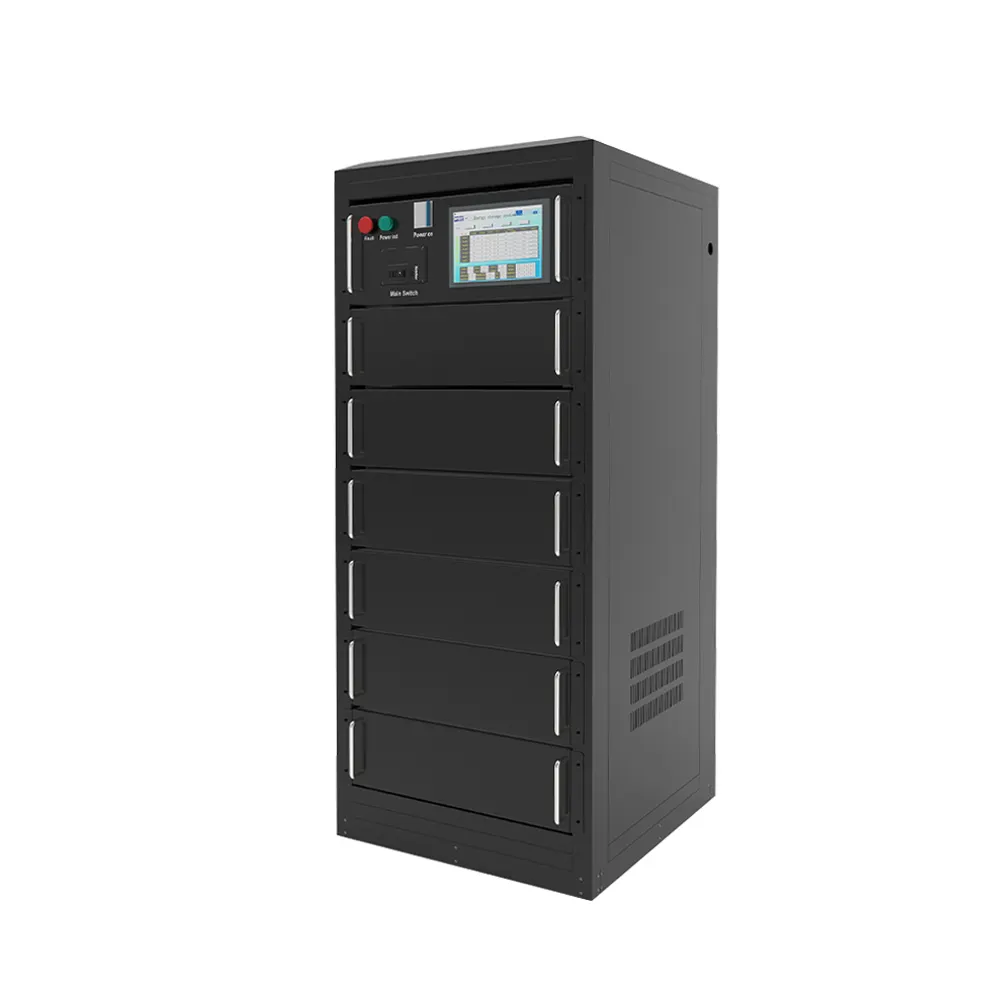

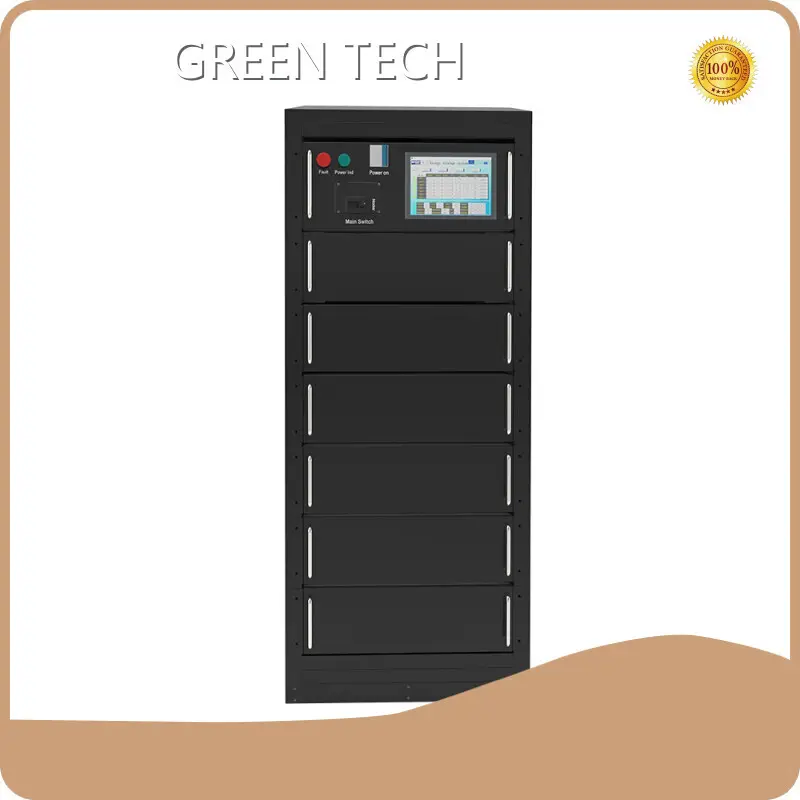

Product details of the power storage systems
Product Information
The production process of power storage systems is constantly monitored by special personnel to ensure its smooth operation. So the pass rate of finished product can be ensured. Our products are designed accordingly to the need of the customer, still keeping the roots of the creative process embedded in the artisan tradition. It is customizable with various specifications in tune with the need of the clients.
Part Number |
GTEM-800V57K-R |
57kWh |
|
Nominal Voltage |
800Vdc |
Maximum Charge Voltage |
900Vdc |
Discharge Cut-off Voltage |
626Vdc |
ESR/AC @1KHz 50% SOC |
<100mΩ |
Max. Continuous Charge Current |
80A |
Max. Continuous Discharge Current |
150A |
Operating Humidity |
0~90% RH Non-condensing |
Cells Self-discharge Rate |
2% per month |
Projected Cycle Life ( 25℃) |
20,000 times |
Recommended Depth of Discharge |
≤ 90% |
Maximum Depth of Discharge |
100% |
Monitoring Data |
System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage |
Terminal |
Large power energy storage terminals |
Environmental Protection |
Indoor |
Shell Material |
Metal |
Parallel Connection |
No limited ( add controller box ) |
communication |
CAN, RS485, LAN |
Weight |
580kg |
Dimensions(WxDxH) |
560x700x1804(mm) |
Mount Options |
On floor |
