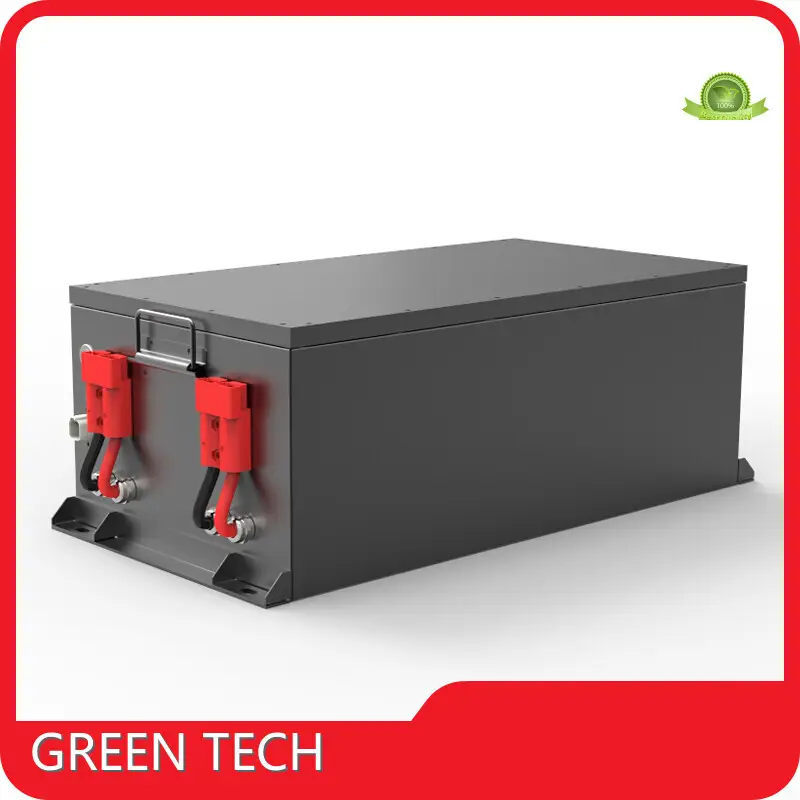

Practical Graphene Battery Price - 720x355x252mm

Product details of the graphene battery price

Quick Detail

The design of graphene battery price is very innovative. To guarantee quality of this product, our quality check team strictly implements measures of testing. It is the everlasting goal for the to pursue energy conservation, emission reduction, low carbon and environmental protection.

Product Description

After improvement, the graphene battery price produced by is more brilliant in the following aspects.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
