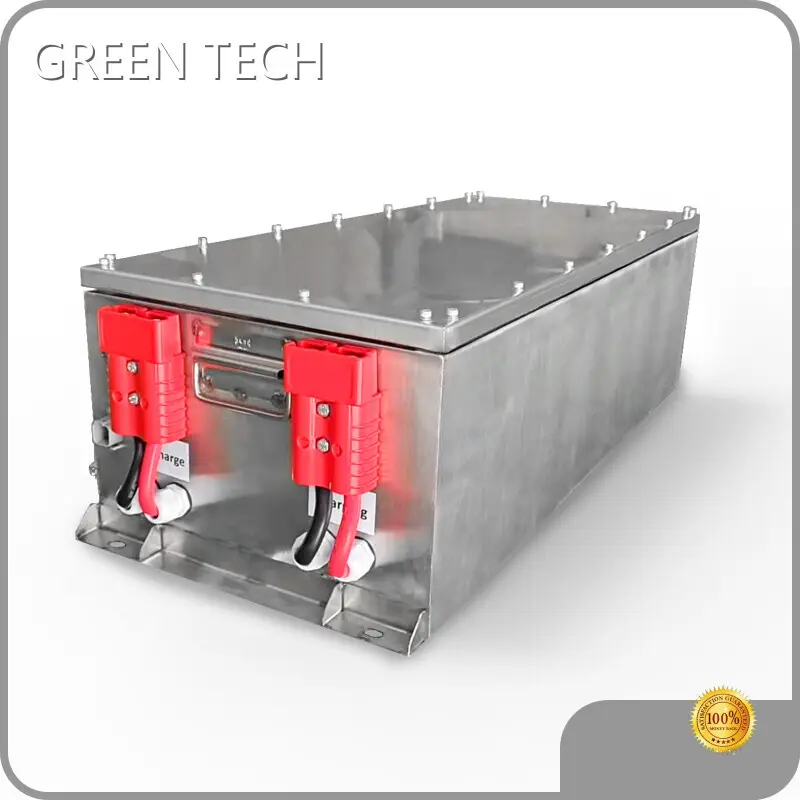

Quality Graphene Battery Ev - 10kWh

Series:
EM Series
Maximum Charge Voltage:
58Vdc
Max. Continuous Discharge Current:
200A
Energy storage:
10kWh
Dimensions(WxDxH):
865x355x260mm
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V10k-B

Energy storage

10kWh

Nominal Voltage

51.8Vdc

Nominal Capacity

210Ah

Maximum Charge Voltage

58Vdc

Discharge Cut-off Voltage

40Vdc

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 3s

300A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Stainless steel

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,

cell’s voltage

Indicator light display

Capacity %

Environmental Protection

IP65

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

82kg

Dimensions(WxDxH)

1124x400x256(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantages

· The design of graphene battery ev is frequently renovate with modern technology.

· graphene battery ev are durable in use.

· provides long-term professional quality services.


Company Features

· As a well-established company, has been designing, manufacturing and distributing high-quality graphene battery ev for many years.

· Our company has obtained technical recognition in the field of graphene battery ev.

· graphene battery ev are available at unbeatable price. Inquire online!


Application of the Product

graphene battery ev of can be widely used in various fields.

has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
