Weight:
20kg
Series:
SM Series
Maximum Charge Voltage:
51V
Max. Continuous Discharge Current:
2,275 A
Dimensions(WxDxH):
417x190x176mm
Inquiry

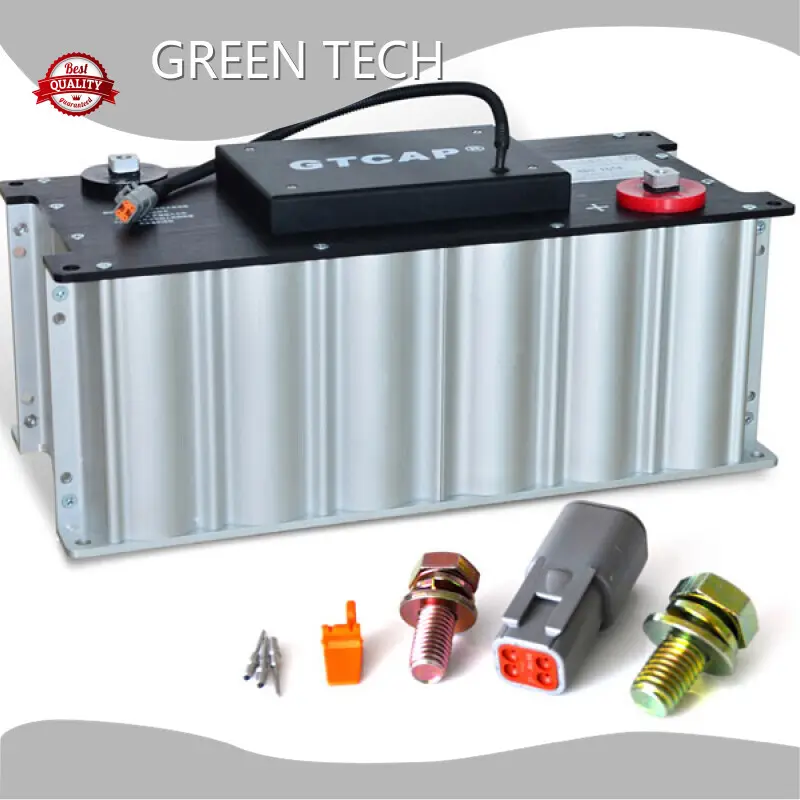

Product details of the graphene batteries in cars


Product Introduction

The material of graphene batteries in cars can be recycled for second use. The product has withstood tough performance test and function optimally even in extreme conditions. And it has a long service life and is flexible enough for use in different conditions and assignments. graphene batteries in cars products from pursue high quality and low prices.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTSM-48V165FUS

Nominal capacitance

125 F

Capacitance tolerance

-10%~~+20%

Rated voltage

48V

Maximum absolute voltage

51V

ESR, DC

5 mΩ

Maximum continuous current (ΔT=40℃)

100 A

Maximum peak current, 1 sec.

2,275 A

Maximum leakage current (after 72hrs @ 25℃)

5.2 mA

Operating temperature range (Cell case temperature)

-40℃ to +65℃

Storage temperature range(Storage uncharged)

-40℃ to +70℃

Power terminals

M8 Screw Hole

Negative Terminal

M10 Screw Hole

Recommended torque - terminal

20/30 Nm

Vibration specification

SAE J2380

ISO16750-2, T14

Shock specification

SAE J2464

Colling

Natural Convection

Weight

20kg

Environmental protection

IP65

Internal temperature sensor

NTC Thermistor

Cell voltage monitoring

Overvoltage Alarm

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Feature

• has experienced professionals to provide a powerful force for high-quality products.
• Our company not only focuses on sales in the domestic market, but also strives to expand the overseas market.
• was founded in and has years of development history with rich industry experience.
are all qualified by national certification. If you have any needs, please contact us as soon as possible.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
