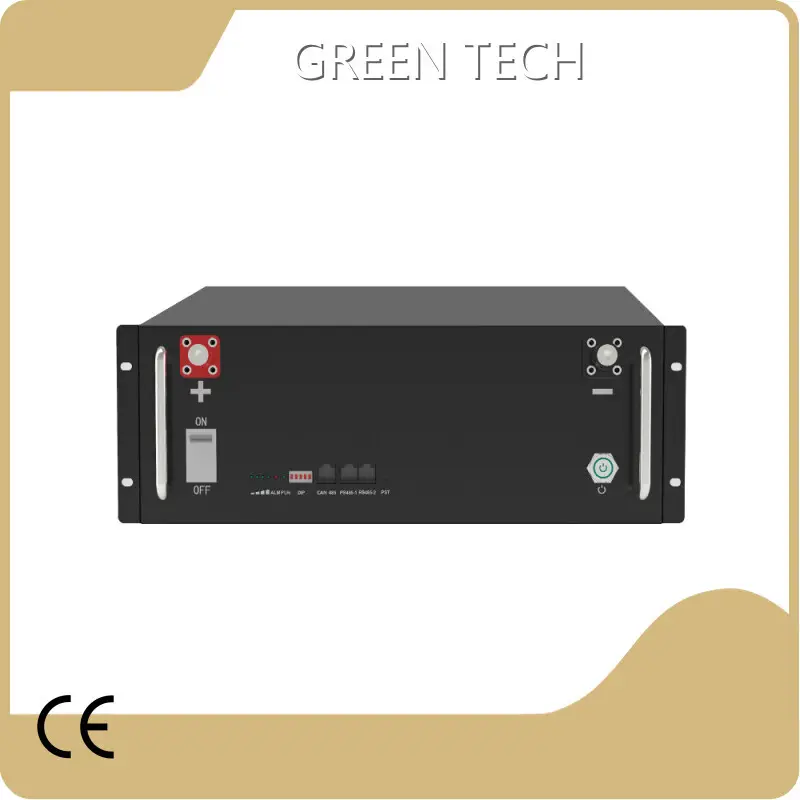

Safe to Use Power Storage Solutions Manufacture

Product details of the power storage solutions

Product Description

With the assistance of our professionals, power storage solutions is delicately crafted with an aesthetically-appealing look. The performance of this product is more stable than other products on the market. hopes that consumers can pleasantly enjoy the services brought by GREEN TECH.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-48V4500-E
Energy storage	4.71kWh
Capacity	92Ah
Nominal Voltage	51.2Vdc
Maximum Charge Voltage	57.6Vdc
Discharge Cut-off Voltage	44.8Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Communication	CAN, RS485
Monitoring Data	System,voltage,current, temperature,SOC,SOH,cells’ voltage
Protection & Alarms	Over charge,over current,over temperature,over discharge
Anti-theft	Intelligent software lock; GPS, displacement lock,buzzer alarm
Projected Cycle Life ( 25℃)	6,000 times
Recommended Depth of Discharge	≤95%
Maximum Depth of Discharge	95%
Shell Material	Metal & ABS plastic
Cooling Method	Natural
Series Connection	Not allowed
Parallel Connection	Up to 16sets (need to clarify when place order)
Series and Parallel Connection	Add controller box (need to clarify when place order)

Weight	38kg
Dimensions(WxDxH)	486x590x133.3(mm)
Mount Options	Standard 19” rack mounted

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Feature

• carries out the service model of 'standardized system management, closed-loop quality monitoring, seamless link response, and personalized service' to provide comprehensive and all-around services for consumers.
• Apart from the sales in major cities in China, our company's products are also exported to Southeast Asia, Europe, America, Europe and other countries and regions.
• Our company has established an elite team of high quality, high education and professional ability. They are always ready to develop new competitive products according to market demand.
• is located in a position with traffic convenience. And the advantageous geographic location creates a broad prospect for the business development of our company.
• Since the inception in has been developing in the industry for years. So far we have accumulated rich industry experience.
are available in the wholesale of mixing diverse styles. If you have needs in bulk purchase, contact us for price details!
