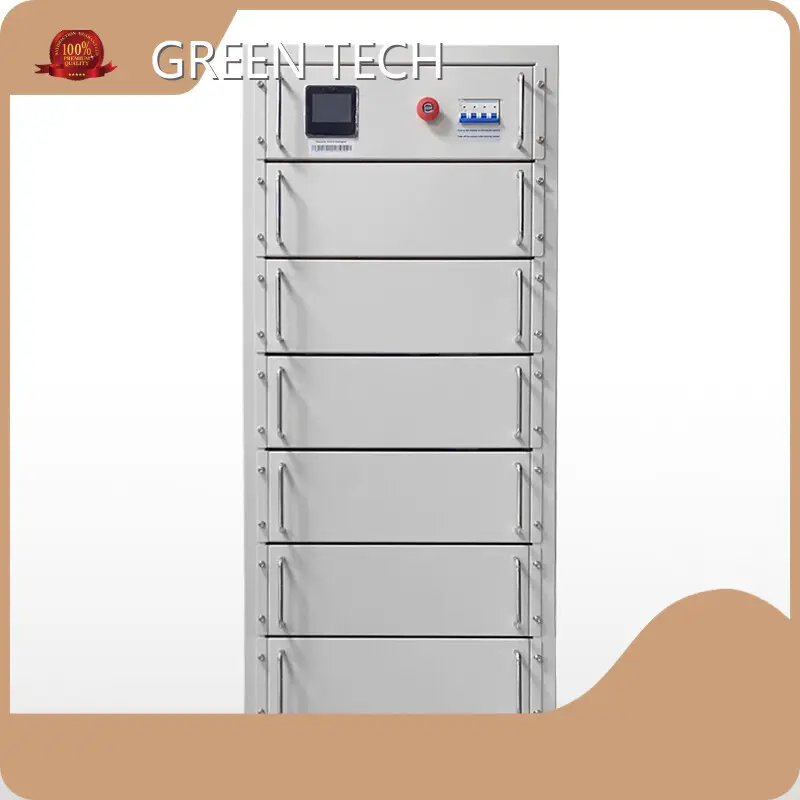

Part Number	GTEM-700V25k-R
Energy storage	25.3kWh
Nominal Voltage	702Vdc
Maximum Charge Voltage	83.16Vdc
Discharge Cut-off Voltage	554.4Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	100A
Discharge rate	2.77C
Max. Continuous Output Power	70kW
*Charge Temperature1**	0℃~+55℃
*Discharge Temperature2**	-30℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Natural cooling
Shell Material	Metal

Weight	420kg
Dimensions(WxDxH)	560x732x1600(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet
