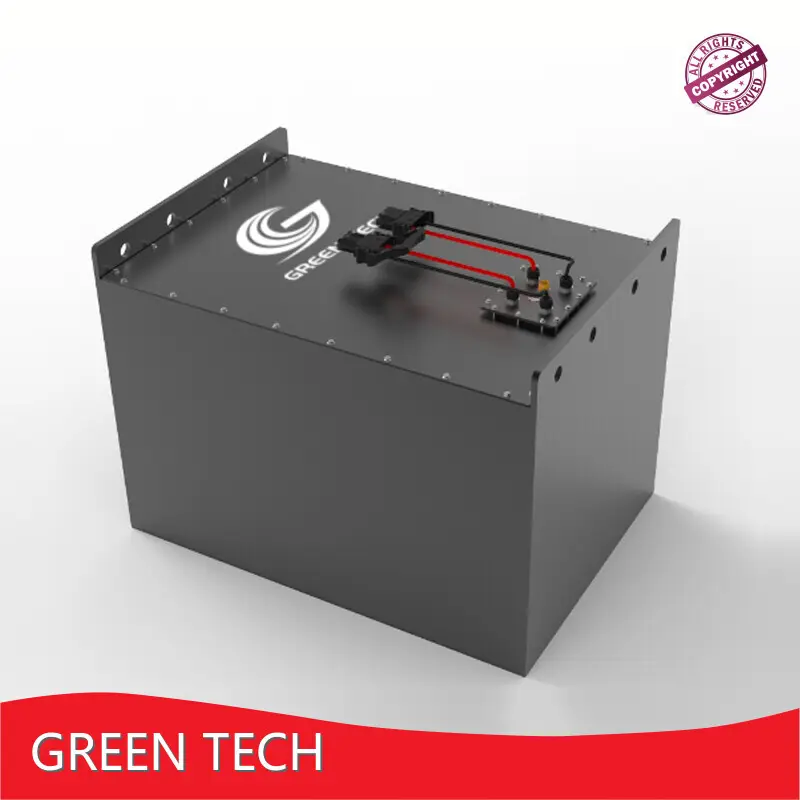

Solar Battery Energy Storage 18.72kWh GTEM-72V18720-Finquire Now

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-72V18720-F
Energy storage	18.72kWh
Nominal Voltage	72Vdc
Maximum Charge Voltage	84Vdc
Discharge Cut-off Voltage	56Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	230kg
Dimensions(WxDxH)	740x540x320(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· solar battery energy storage combines high performance materials with trendy and innovative design.

· This product performance is stable, the function is formidable. Its incomparable characteristic has obtained the customer the widespread high praise.

· In order to further develop the its business, has established a strong sales network.

Company Features

· is highly experienced in producing solar battery energy storage.

· Our company has excellent designers. They know the ever-changing solar battery energy storage market fashion and trends so that they are able to come up with product ideas as per industry requirements.

· intends to serve each client well. Call now!

Application of the Product

solar battery energy storage can be applied to different fields and scenes, which enables us to meet different requirements.

can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
