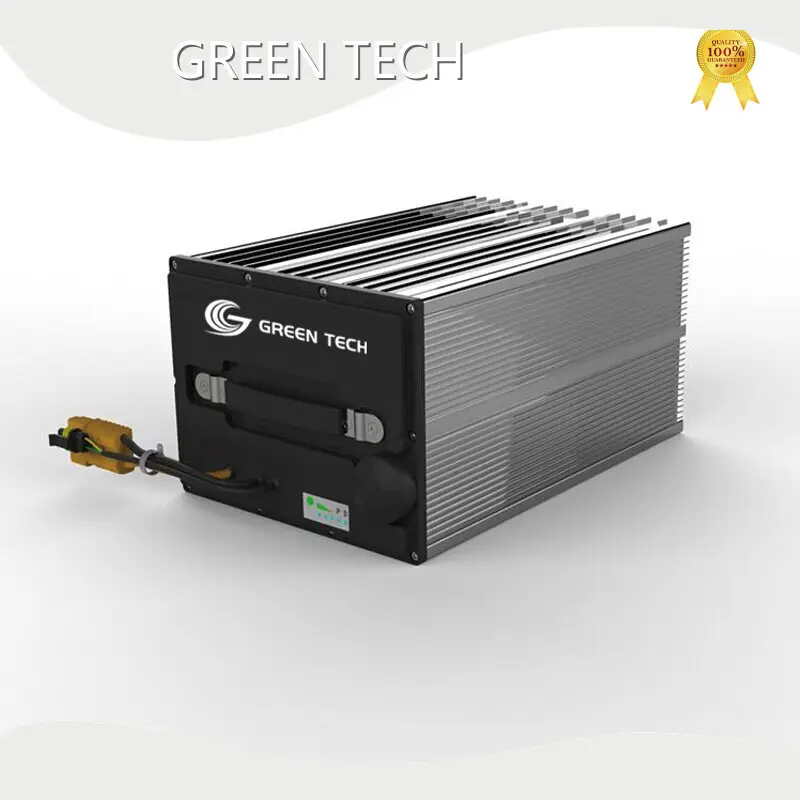

Solar Battery Energy Storage 58.8Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V1248-M
Energy storage	1248Wh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	42Vdc
ESR/AC @1KHz 50% SOC	<12mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	80A
Cut-off current (charging)	4A
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Recommend within 10sets
Series-Parallel Connection	Not allowed

Weight	15.5kg
Dimensions(WxDxH)	230x180x300(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· solar battery energy storage is designed after testing on the potential customers and the market research groups.

· The products are of high quality and stable performance, and are well received by customers.

· solar battery energy storage has been sold to oversea market for several years and has been well received by customers.

Company Features

· is a preferred manufacturer of solar battery energy storage with steady quality and steady price.

· Our technical support engineers have deep industry and technical knowledge on solar battery energy storage.

· All products are supplied with reasonable prices and high quality. Contact!

Application of the Product

Our solar battery energy storage can be used in a variety of industries to play a certain role.

has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
