Solar Battery Energy Storage Brand Design

Product details of the solar battery energy storage

Product Overview

All shapes and all sizes of solar battery energy storage can be selected by you. At the same time, it also guarantees the upgrade and maintaince of solar battery energy storage. Complete quality assurance service makes win the customers from all directions.

Product Information

solar battery energy storage is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.

Product Parameters

General Characteristics

Mechanical Specifications

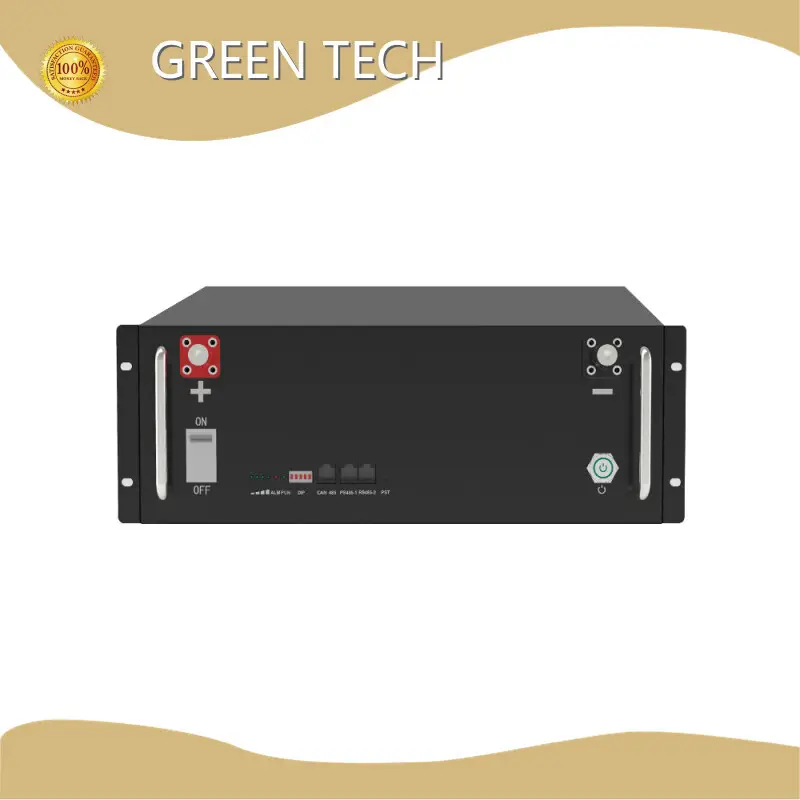

Part Number	GTEM-48V7400-E
Energy storage	7.45kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	39.2Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Round Trip Efficiency	96.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	52kg
Dimensions(WxDxH)	470x565x170(mm)
Operating Humidity	0-90%RH Non-condensing

Certificate Options

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Information

is a highly qualified manufacturer of solar battery energy storage and has been widely renowned for its strong manufacturing capacities. Over the year, we have significantly increased our sales volumes in overseas solar battery energy storage markets. At this moment, we are facing a large market momentum, which helps us expand more marketing channels. holds the tenet of customer service. Inquire now!
The products we produced are excellent in quality and cost-effective. If in need, please contact us!
