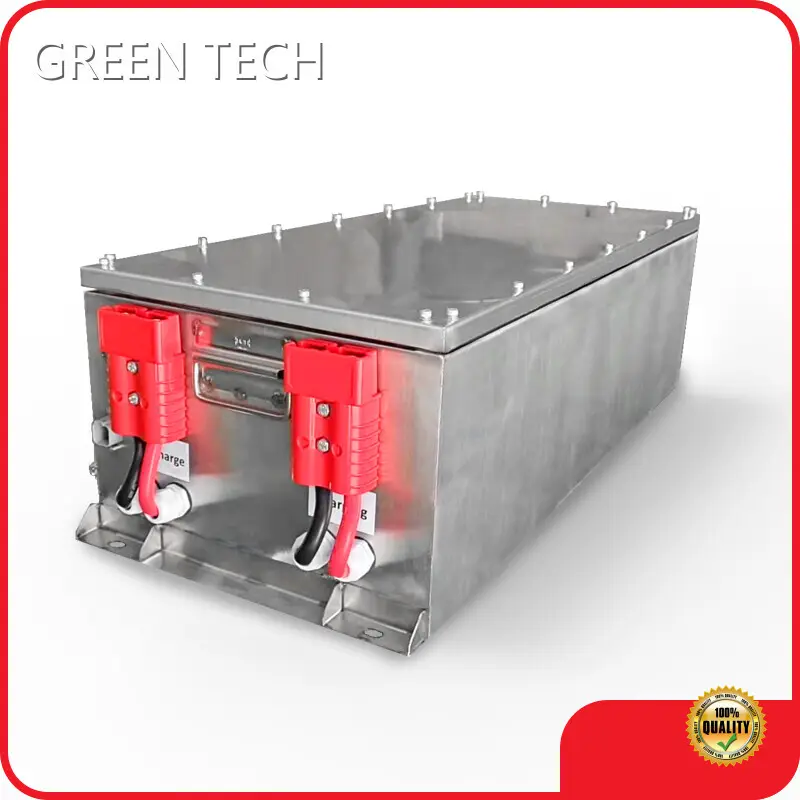

Solar Energy Storage System Bulk Buy 190kg

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-96V20k-B
Energy storage	20kWh
Nominal Voltage	96Vdc
Nominal Capacity	210Ah
Maximum Charge Voltage	109.2Vdc
Discharge Cut-off Voltage	78Vdc
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	100A
Max. Continuous Discharge Current	500A
Absolute Peak Current 10s	600A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP67
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	190kg
Dimensions(WxDxH)	810x550x500(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The raw material of solar energy storage system undergoes a rigorous selection procedure.

· The product is able to meet the high quality requirements of many varieties of production.

· All complaints from our customers will be sent response with solution at our earliest time in

Company Features

· has been the principal solar energy storage system supplier in solar energy storage system field.

· In recent years, the factory has undergone a large-scale update of manufacturing facilities to gradually achieve automated production. This significantly contributes to increasing productivity.

· Our same goal is to become an advanced and modern enterprise that produces solar energy storage system. Get quote!

Application of the Product

solar energy storage system can be used in different fields.

has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.
