Model |
SUN-5K-SG01LP1-US |
SUN-6K-SG01LP1-US |
SUN-7.6K-SG01LP1- |
SUN- 8 K- SG0 1 LP1 - US/EU |
Battery Type |
Lead-acid or lithium-ion |
|||
Battery Voltage Range (V) |
40-60V |
|||
Max.Charging Current (A) |
120 A |
13SA |
190A |
190A |
Max. Discharging Current (A) |
120 A |
13SA |
190A |
190A |
Charging Curve |
3 Stages / Equalization |
|||
Extemal Temperature Sensor |
Optional |
|||
Charging Strategy for Li-ion Battery |
Self-adapti on to BMS |
|||
PV String Input Data |
||||
Max. DC Input Power (W) |
6500W |
7800W |
9880W |
10400W |
PV Input Voltage (V) |
370V (100v-500V) |
|||
MPPT Range (V) |
12SV-425V |
|||
Start-up Voltage (V) |
150V |
|||
PV Input Current (A) |
11A+11A |
22A+11A |
22A+22A |
22A+22A |
No. of MPPT Trackers |
2 |
|||
No. of Strings Per MPPT Tracker |
1+1 |
2+1 |
2+2 |
2+2 |
AC Output Data |
||||
Rated AC Output and UPS Power (W) |
5000W |
6500W |
7600W |
8000W |
Max. AC Output Power |
5S00W |
6600W |
8360W |
8800W |
Peak Rower (off grid) |
2 times of rated power, 10 S |
|||
AC Output Rated Current (A) |
20.8A |
25A |
31.7A/33A |
31.4A/35A |
Max AC Current (A) |
22.9A |
27.5A |
34.9A/36.3A |
36.7A/38.5A |
Max.Continuous AC Passthrough (A) |
35A |
40A |
50A |
S0A |
Output Frequency and Voltage |
50 / 60Hz, 120/24Vac(split phase), 2O8Vac(2/3 phase). 230Vac (single phase) |
|
||
Grid Type |
Split phase:2/3phase;Single Phase |
|||
Current Harmonic Distortion |
THD<3% (Linear back <15%) |
|||
Max. Efficiency |
97.60% |
|||
Grid Regulation |
ULI741, IEEE 1547, RULE21,VDE0126, AS4777, NRS2017, G98,G99, IEC61683, IEC62116, IEC61727 |
|||
Safety Regulation |
IEC62109-1, LEC62109-2 |
|||
EMC |
EN61000-6-1. EN610006-3,FCC15class B |

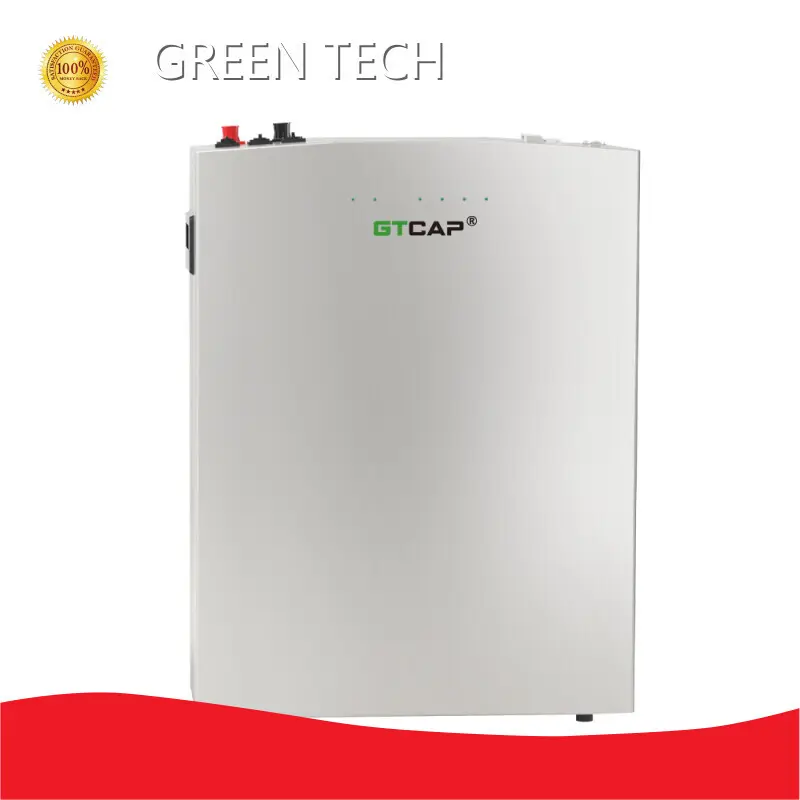

Part Number |
GTEM-48V5.5K-W |
GTEF-48V10K-W |
GTEM-48V15K-W |
Energy storage |
5.44kWh |
10kWh |
15kWh |
Capacity |
105Ah |
210Ah |
294Ah |
Nominal Voltage |
51.8V/DC |
51.2V/DC |
51.8V/DC |
Maximum Charge Voltage |
58V/DC |
57V/DC |
58V/DC |
Discharge Cut-off Voltage |
42V/DC |
44V/DC |
42V/DC |
Internal Configuration |
14S5P/EM21 |
16S7P/EF30 |
14S14P/EM21 |
ESR/AC @1KHz 50% SOC |
<8mΩ |
<9mΩ |
<15mΩ |
Max. Continuous Charge Current |
100A |
100A |
200A |
Max. Continuous Discharge Current |
100A |
100A |
200A |
Dimensions |
470x510x175(mm) |
730x750x138(mm) |
700x765x175(mm) |
Weight |
45kg |
117kg |
132kg |
Projected cycle life(25C) |
20000 times |
10000 times |
20000 times |
Round Trip Efficiency*1 |
97.5% |
97.7% |
97.5% |
Cells Self- discharge Rate |
2% per month |
||
Projected life(25C) |
15 years |
||
Recommended Depth of Discharge |
≤90% |
||
Maximum Depth of Discharge |
100% |
||
Cooling Method |
Natural |
||
Shell Material |
Metal & ABS plastic |
||
Parallel Connection |
Up to 16 sets |
||
Compatible Protocol Monitoring Data |
CAN, RS485 |
||
Monitoring Data |
System voltage, current, temperature, SOC, SOH, cycle, cell’ s voltage |
Module type |
|
|
YLxxxDF54e/2(xxx=Pmax) |
|||||
Power output |
Pmax |
W |
390 |
395 |
400 |
405 |
410 |
415 |
Power output tolerances |
△Pmax |
W |
0/+5 | |||||
Module efficiency |
ηm |
% |
19.97 |
20.23 |
20.48 |
20.74 |
21.00 |
21.25 |
Voltage at Pmax |
Vmpp |
V |
30.27 | 30.42 | 30.56 | 30.71 | 30.86 | 31.00 |
Current at Pmax |
Impp |
A |
12.89 | 12.99 | 13.09 | 13.19 | 13.29 | 13.39 |
Open-circuit voltage |
Vac |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short-circuit voltage |
Isc |
A |
13.68 |
13.77 |
13.86 |
13.95 |
14.04 |
14.13 |
*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3
Power output |
ηm |
% |
296.85 |
300.63 |
304.34 |
308.17 |
312.03 |
315.80 |
Voltage at Pmax |
Vmpp |
V |
28.87 |
29.01 |
29.01 |
29.14 |
29.43 |
29.56 |
Current at Pmax |
Impp |
A |
10.28 |
10.36 |
10.44 |
10.52 |
10.60 |
10.68 |
Open- circuit voltage |
Voc |
V |
34.98 |
35.08 |
35.17 |
35.27 |
35.36 |
35.46 |
Short- circuit voltage |
Isc |
A |
11.02 |
11.09 |
11.17 |
11.24 |
11.31 |
11.38 |
*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.
Power output |
Pmax |
% |
426.86 |
432.33 |
437.80 |
443.27 |
448.75 |
454.22 |
Voltage at Pmax |
Vmpp |
V |
30.27 |
30.42 |
30.56 |
30.71 |
30.86 |
31.00 |
Current at Pmax |
Impp |
A |
14.10 |
14.21 |
14.33 |
14.43 |
14.54 |
14.65 |
Open- circuit voltage |
Voc |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short- circuit voltage |
Isc |
A |
14.97 |
15.07 |
15.17 |
15.27 |
15.37 |
15.47 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Nominal operating cell temperature |
NOCT |
C |
39±2 |
Temperature coefficient of Pmax |
γ |
% / C |
-0.35 |
Temperature coefficient of Voc |
β |
% / C |
-0.28 0.05 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Compatible Protocol: CAN, RS485
Company Advantages
· solar energy storage system is manufactured under the vigilance of our diligent professionals as per production norms using premium quality materials.
· The features of solar energy storage system are refined to meet the diverse needs of customers.
· The popularity of solar energy storage system also can not be achieved without the contribution of service team.
Company Features
· is one of the biggest exporters of solar energy storage system and has abundant rich resources.
· takes ongoing special efforts and investment on engineering, design, components and production to meet the highest requirements for outstanding solar energy storage system.
· What we hold on to is: always being prepared for any eventualities. No matter from the product quality nor customer service, we will work hard to improve so as to stands firmly and stably in the market. Check it!
Application of the Product
The solar energy storage system produced by has a wide range of applications.
With Internet technology, we provide a one-stop solution for practical and effective implementation of related problems encountered in the process of purchasing products.
