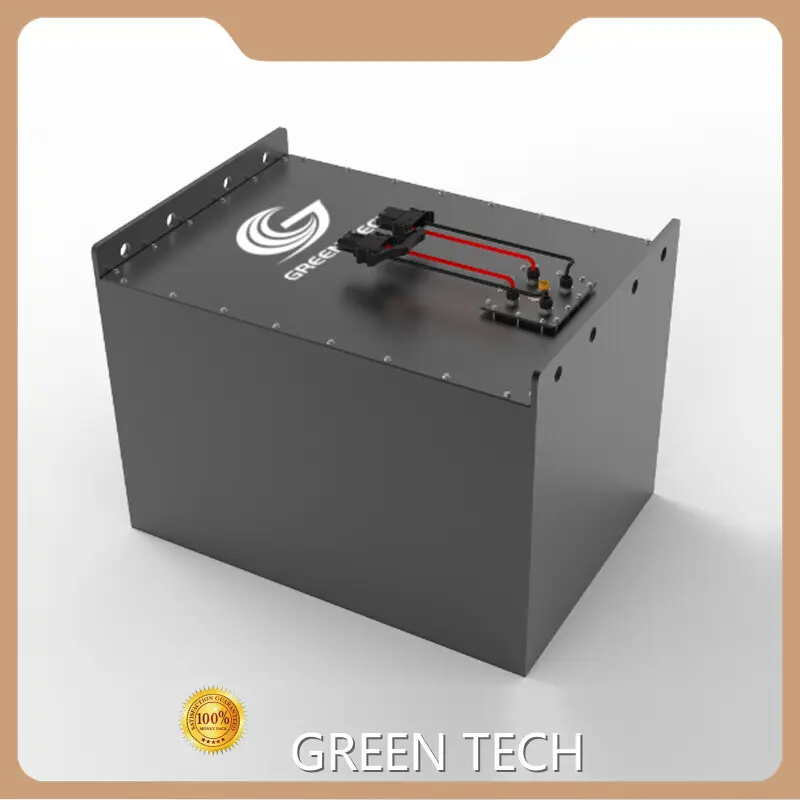

Solar Home Batteries for Agriculture - 18.72kWh

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-72V18720-F
Energy storage	18.72kWh
Nominal Voltage	72Vdc
Maximum Charge Voltage	84Vdc
Discharge Cut-off Voltage	56Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	230kg
Dimensions(WxDxH)	740x540x320(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The specifications of solar home batteries can be customized according to customer needs.

· We have implemented a rigorous quality control scheme.

· Owing to its wade range of application, the product has won many praises from customers.

Company Features

· has a proud and rich heritage of research and development of solar home batteries. We produce and distribute high-quality products.

· Undergoing difficulties to improve the quality of solar home batteries turns out to be efficient for

· Going forward, aims to expand its strong positions in solar home batteries field. Inquire now!

Application of the Product

solar home batteries can be used in a variety of situations.

always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
